Quick Answer: Semiconductor equipment primarily uses industrial TFT LCD technology, including TN, VA, IPS-type, ADS, and AHVA panels. These displays can be integrated as LCD modules, open-frame monitors, panel-mount touchscreens, or panel PCs. Projected capacitive and resistive touchscreens are both used, while optical bonding, anti-glare glass, wide-temperature backlights, and industrial video interfaces improve performance in specific applications. The correct technology depends on the machine’s function, software, operator workflow, environment, and lifecycle requirements.

1. What Display System Architectures Are Used in Semiconductor Equipment?

When engineers discuss display technology, they sometimes focus only on whether the LCD uses TN, VA, or IPS-type construction. In an equipment project, however, the system architecture is equally important. The manufacturer must decide how much of the display assembly will be integrated into the machine and which components will remain independently replaceable.

What Is an Embedded TFT LCD Module?

An embedded TFT LCD module normally includes the LCD panel, LED backlight, timing electronics, and a native interface such as LVDS or eDP. The equipment manufacturer designs the enclosure, mounting brackets, front glass, controller, cables, power supply, and software around the module.

This arrangement provides a high degree of design freedom. It is suitable for compact control panels and custom equipment where space, appearance, and integration depth are important. It can also reduce the number of unnecessary external connectors.

The trade-off is that the equipment manufacturer assumes more engineering responsibility. Panel timing, backlight power, cable impedance, grounding, mechanical pressure, thermal dissipation, and replacement compatibility must all be controlled.

What Is an Open-Frame Industrial Monitor?

An open-frame monitor combines the LCD with a display controller, power input, metal chassis, and standard video interfaces. It may also include a touchscreen. The assembly is designed to be installed behind the equipment’s own bezel or front cover.

This architecture reduces development work because the monitor can accept HDMI, DisplayPort, DVI, or VGA signals directly, depending on the controller. It is often practical for equipment manufacturers that want a customized exterior but do not want to develop an LVDS or eDP display circuit.

Open-frame monitors require more installation depth than bare LCD modules. Engineers must also check controller-board heat, cable access, mounting-hole position, and whether the monitor can recover correctly after equipment power cycling.

What Is a Panel-Mount Touch Monitor?

A panel-mount touch monitor is a more complete HMI assembly. It normally includes the LCD, touchscreen, cover glass or front bezel, display controller, touch controller, housing, and mounting system. The front may be designed to resist dust or cleaning liquids when correctly installed in the equipment enclosure.

This solution simplifies final assembly and service replacement. It is commonly used where the operator needs direct access to recipes, process status, alarms, wafer maps, or maintenance menus.

Ingress protection must be understood correctly. A front panel can be designed for an IP-rated installation, but the final protection level depends on the gasket, mounting pressure, enclosure opening, cable entries, and complete equipment structure.

When Is an Industrial Panel PC Used?

An industrial panel PC combines the touchscreen display and embedded computer in one housing. It may run the machine HMI locally and communicate with the PLC, motion controller, equipment computer, factory network, or manufacturing execution system.

Panel PCs can simplify system architecture, but they also connect the display lifecycle to the computer platform. If the processor board, operating system, memory, or storage becomes obsolete, replacing the complete unit may require more qualification than replacing a separate display.

For equipment expected to remain in service for many years, some manufacturers prefer a separate industrial monitor and computer. Others choose a panel PC because installation space and wiring simplicity are more important. Neither approach is universally better.

Why Are Remote Review Displays Also Important?

Some inspection and metrology data are reviewed outside the cleanroom. A remote engineering workstation may receive images, measurement results, recipes, and alarm histories from several machines. These displays can be larger and higher in resolution than the local equipment HMI because they are not restricted by the machine enclosure.

The distinction between a local operator display and a remote review display is important. The local screen must prioritize clear operation and reliability, while the engineering station may prioritize image area, data comparison, and multi-window analysis.

For more information about why these interfaces are required, see Why Do Semiconductor Machines Require Industrial LCDs?.

2. Which LCD Panel Technologies Are Suitable for Semiconductor Equipment?

Industrial TFT LCDs are available with several liquid-crystal modes and backplane technologies. These technical terms are often used as marketing labels, but each one has practical consequences for viewing angle, contrast, response, color stability, cost, and availability.

When Is TN TFT LCD Technology Used?

TN, or twisted nematic, is one of the most established TFT LCD technologies. It can provide fast response, straightforward driving, and competitive cost. Many legacy industrial machines use TN panels because the original equipment was designed when wide-viewing alternatives were less common.

The main limitation is viewing-angle performance. Contrast and color can change when the screen is viewed from above, below, or from the side. This may be acceptable for a fixed operator position, but it becomes problematic when the display is mounted above eye level, installed at an angle, or viewed by several people.

TN can still be suitable for basic status displays, dedicated control terminals, and cost-sensitive equipment where the operator remains directly in front of the screen. It is less attractive for image review or interfaces using color to distinguish subtle process conditions.

When Is VA LCD Technology Used?

VA, or vertical alignment, technology is known for relatively high native contrast. Dark interface backgrounds, graphs, and equipment diagrams can appear clear because black levels are generally stronger than those of many standard LCD alternatives.

VA panels offer wider viewing than conventional TN displays, although color and gamma can still shift at oblique angles. They can be appropriate for industrial monitors, diagnostic screens, and control interfaces where high contrast is valuable.

Engineers should evaluate the actual viewing direction and interface colors. A specification sheet may provide a wide nominal viewing angle, but the visible appearance of dark tones can still change when the observer moves away from the center.

Why Are IPS-Type, ADS, and AHVA Panels Common?

IPS-type LCD technologies keep the liquid-crystal movement primarily within the plane of the panel. Manufacturer-specific versions include ADS and AHVA. These technologies are not identical, but they share the practical advantage of wider viewing angles and more stable image appearance than traditional TN construction.

Wide-viewing panels are useful in semiconductor equipment because displays are not always installed directly at eye level. An operator may view the screen while loading material, observing another subsystem, or standing beside a service engineer. Stable viewing also helps when several people review inspection images or process information together.

IPS-type panels are often preferred for wafer inspection, metrology, recipe development, and high-information-density interfaces. Their more consistent color and grayscale performance supports image review, although the display must still be validated with the complete graphics and software path.

The importance of display performance in inspection workflows is examined in How Do LCD Displays Improve Wafer Inspection Systems?.

Do Backplane Technologies Affect Equipment Displays?

Most conventional industrial TFT LCDs use amorphous-silicon, or a-Si, backplanes. This technology is mature and available across a wide range of sizes, resolutions, and aspect ratios.

LTPS backplanes can support higher pixel density, narrower borders, and lower power in certain designs. They are more common in smaller, high-resolution displays than in traditional industrial HMIs. Oxide TFT backplanes may also be used in higher-resolution or specialized panels.

For most semiconductor equipment projects, the engineer does not need to select a panel according to backplane material alone. Resolution, image stability, interface, thermal performance, availability, and mechanical compatibility normally have a more direct effect on integration.

Are OLED Displays Suitable for Semiconductor Equipment?

OLED technology provides excellent contrast, wide viewing angles, and fast response because each pixel produces its own light. It can be attractive for compact indicators or specialized instruments.

However, semiconductor equipment HMIs often display static menus, status bars, wafer maps, and alarm areas for long periods. Uneven pixel aging and image retention must therefore be considered. Industrial OLED availability, replacement compatibility, cost, and long-term supply may also be more limited than comparable TFT LCD options.

OLED is not unsuitable by definition, but it should be selected because the application benefits justify it. For most mainstream operator interfaces, industrial TFT LCD remains the more predictable and serviceable technology.

Are Monochrome Displays Still Used?

Monochrome LCDs can still be found in older machines, subsystem controllers, power units, vacuum controls, and compact diagnostic instruments. They consume little power and can be effective for simple numeric or text information.

Their limitation is information capacity. They are not suitable for modern graphical interfaces that require wafer maps, images, trend charts, multilingual text, and detailed alarm navigation. During equipment modernization, a color TFT LCD is often used to replace several separate indicators and small character displays.

3. Which Touchscreen and Optical Technologies Improve Semiconductor HMIs?

A touchscreen changes the display from an information device into an operator-control surface. Its technology must therefore be selected according to gloves, contamination, cleaning, electromagnetic noise, user-interface design, and safety requirements.

When Should Projected Capacitive Touch Be Used?

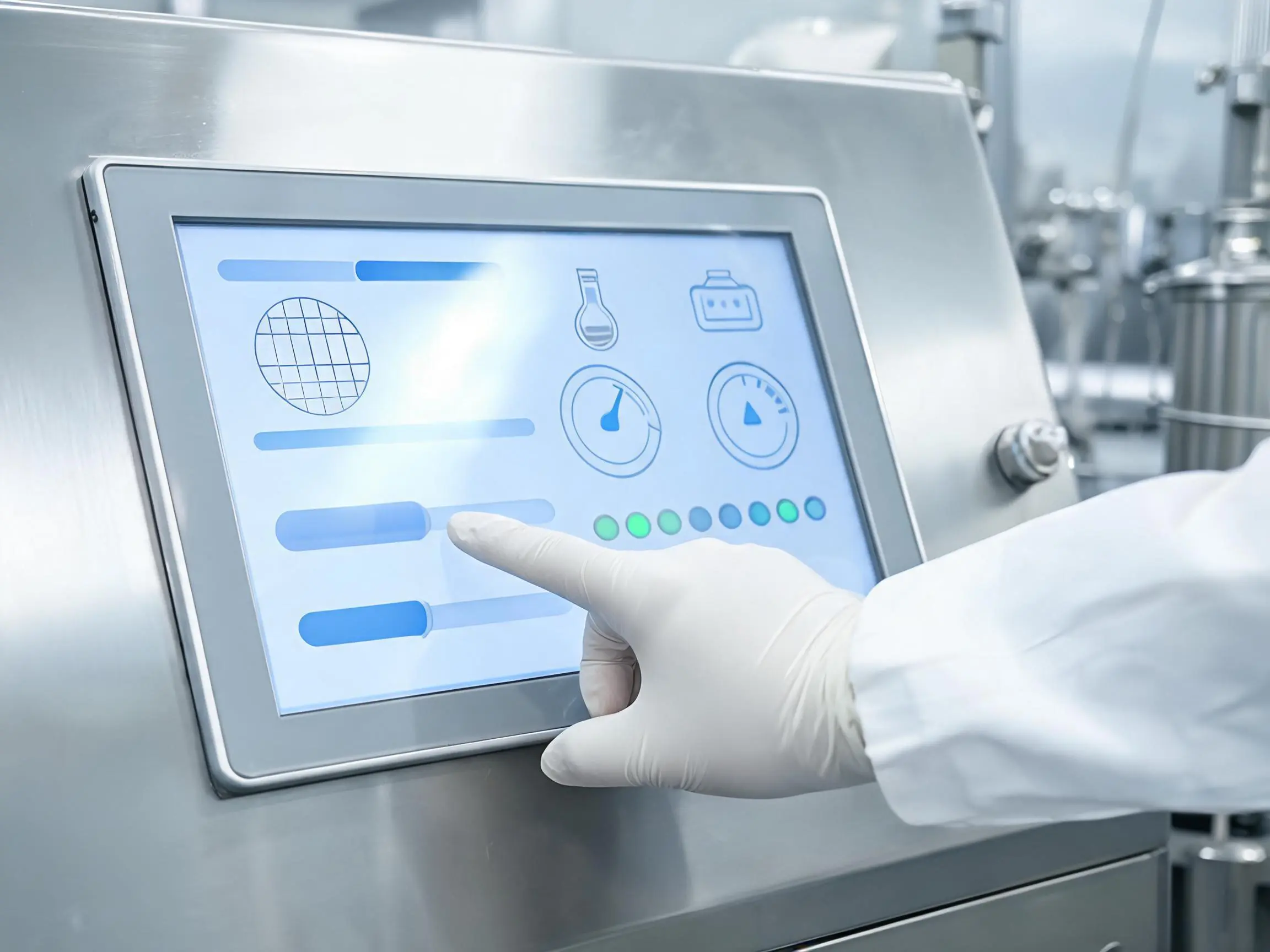

Projected capacitive touch, commonly called PCAP, provides good optical clarity, smooth operation, and multi-touch support. It can work through a customized cover glass, allowing the machine manufacturer to create a flush front with printed borders, branding, and protected display edges.

PCAP is well suited to wafer-map navigation, image zooming, recipe selection, trend review, and modern gesture-based interfaces. It is also easier to clean than a recessed screen with an exposed bezel.

Reliable PCAP performance depends on the complete mechanical and electrical structure. Cover-glass thickness, glove type, grounding, touch-controller firmware, display noise, motor drives, switching power supplies, and cable routing can all affect sensitivity.

A touch panel that performs correctly as a loose sample should not be considered approved until it has been tested in the final enclosure with the intended gloves and all major equipment subsystems operating.

When Should Resistive Touch Be Used?

Resistive touch responds to physical pressure rather than the electrical properties of a finger. It can be operated with thick gloves, a stylus, or nonconductive objects. This makes it useful for maintenance terminals and established industrial interfaces that use relatively large buttons.

Resistive touch normally supports single-point input and does not provide the same visual appearance or gesture performance as PCAP. Its flexible top layer is also more vulnerable to wear and surface damage than thick cover glass.

Despite these limitations, resistive technology should not automatically be regarded as outdated. In an application where simple input, heavy-glove operation, and predictable single-touch control are more important than multi-touch, it can remain the practical choice.

How Does Optical Bonding Improve a Display?

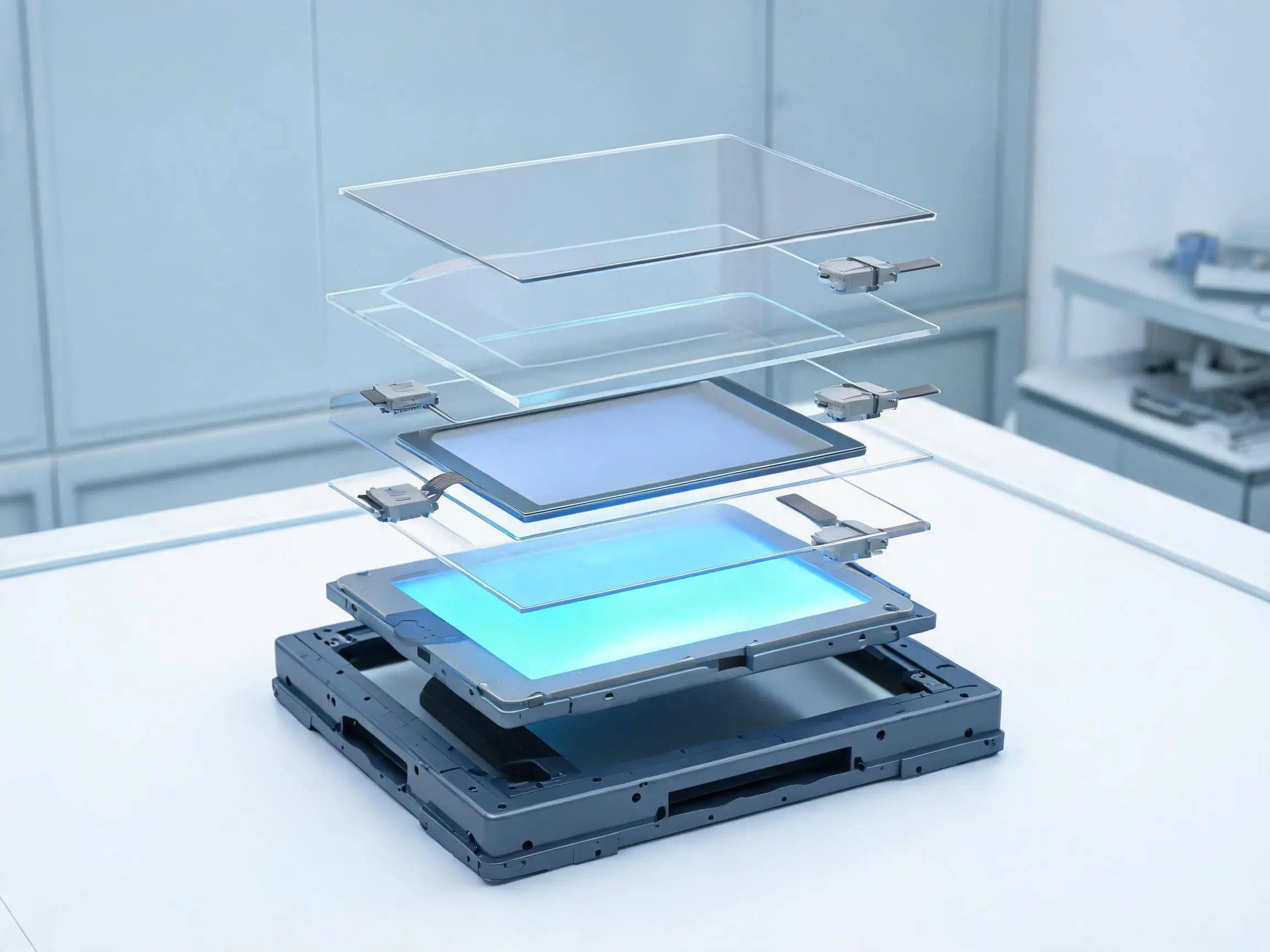

Optical bonding fills the air gap between the LCD and touchscreen or cover glass with a transparent adhesive. Removing this gap reduces internal reflection and prevents dust from entering the optical space. The bonded assembly can also feel more mechanically solid.

For semiconductor equipment, the improvement is most visible when the interface contains dark inspection images or when overhead lighting produces reflections on the front glass. Optical bonding can improve perceived contrast without requiring an excessively bright backlight.

Bonding is not necessary for every machine. It increases assembly cost and changes the replacement strategy because the LCD, touch panel, and cover glass become a combined component. Engineers should balance optical benefits against serviceability, display size, project volume, and lifecycle requirements.

Which Cover-Glass Treatments Are Useful?

Anti-glare treatment diffuses reflected light and can improve readability under strong overhead illumination. If the haze level is too high, however, fine text and high-resolution inspection images may appear less sharp.

Anti-reflective coating can reduce reflection while maintaining image clarity, but it requires more careful cleaning and cost control. Anti-fingerprint treatment can make the surface easier to wipe, particularly on frequently operated touch displays.

The correct surface treatment should be tested with the actual image content and cleaning procedure. Selecting a coating only from a datasheet does not show how it will behave under the equipment’s real lighting conditions.

Can a Touchscreen Replace Physical Safety Controls?

A touchscreen can control recipes, motion commands, alarm acknowledgement, and maintenance functions, but it must not replace an emergency stop, safety interlock, or other safety-rated control. Touch input depends on software, communication, controller electronics, and display power, so it is not an independent safety mechanism.

Critical actions should use clear confirmation and appropriate access control. Small buttons placed close together can lead to unintended operation, especially when gloves are used. The HMI should be designed around the selected touch technology rather than expecting the touchscreen to compensate for a crowded interface.

Additional touchscreen design principles are discussed in How Do Touchscreens Improve AI Equipment Management?.

4. How Should Engineers Select Display Technology for Different Machines?

The most reliable selection process begins by defining what the operator must see and do. The engineer can then determine the appropriate resolution, viewing technology, touchscreen, interface, optical structure, and display architecture.

What Does a Basic Process Equipment HMI Require?

Etching, deposition, cleaning, diffusion, vacuum, and material-handling equipment often use the display for recipe management, subsystem status, pressure or temperature values, alarm handling, and maintenance access.

For these tasks, readability and reliable touch operation are normally more important than highly accurate color reproduction. A 10.1-inch, 12.1-inch, 15-inch, or 15.6-inch industrial TFT LCD may be sufficient, depending on the software and viewing distance.

IPS-type panels are useful when the display is mounted at an angle. TN may remain acceptable for a fixed viewing position, while VA can be considered when the interface uses dark backgrounds and high contrast is desirable.

What Does Inspection and Metrology Equipment Require?

Inspection, review, and metrology systems present wafer maps, defect images, measurement results, classification data, histograms, and detailed equipment status. These applications usually benefit from higher resolution, wider viewing angles, controlled reflection, and consistent grayscale reproduction.

A larger Full HD or higher-resolution display may allow the software to present an image viewer, wafer map, result table, and tool status without excessive window switching. The actual resolution should still match the application software because some established inspection programs do not scale correctly on high-pixel-density screens.

If the display is used for visual defect decisions, the complete rendering path must be validated. Panel performance alone does not guarantee consistent image presentation. Graphics hardware, controller settings, operating-system scaling, application rendering, ambient lighting, and panel aging also affect the result.

What Does Backend Assembly and Test Equipment Require?

Dicing, die-bonding, wire-bonding, packaging, automated optical inspection, and electrical test systems often use displays for motion control, camera images, production statistics, part identification, and fault diagnosis.

These machines may require compact touchscreens for local operation or larger monitors for camera and inspection views. Response time can become more relevant when live motion or rapidly changing camera images are displayed, although normal industrial LCD response is adequate for most HMI functions.

The display structure should also account for vibration, repeated operator contact, and maintenance access. Cable retention and connector location are important when the display is installed on a moving arm or adjustable console.

Which Resolution and Aspect Ratio Should Be Selected?

Legacy semiconductor equipment commonly uses 4:3 or 5:4 displays, including XGA and SXGA resolutions. Replacing these screens with a widescreen model can create mechanical gaps or software distortion. If the original interface was developed for a fixed resolution, maintaining the same aspect ratio may be safer than choosing a newer panel only because it is easier to source.

New equipment increasingly uses 16:9 or 16:10 displays because they provide more horizontal space for multi-panel interfaces. Full HD is common in larger operator screens, while compact displays may use WXGA or other resolutions suited to their dimensions.

The engineer should compare active area, outline dimensions, pixel density, interface timing, and software scaling—not only diagonal size.

Which Electrical Interfaces Are Appropriate?

LVDS remains common in established embedded industrial displays. eDP is increasingly used in newer panels, particularly at higher resolutions. A controller board may be required when replacing an LVDS panel with an eDP model or when the host provides a standard external video output.

Complete monitor assemblies often use HDMI, DisplayPort, DVI, or VGA. HDMI and DisplayPort are convenient, but startup timing, cable locking, electromagnetic compatibility, and recovery after power interruption must be tested.

Touch controllers normally communicate through USB or I2C. USB simplifies integration with industrial computers, while I2C can be useful for embedded designs that require direct controller communication.

Why Do Reliability and Lifecycle Matter?

Semiconductor machines can remain in production long after the original display was released. If a consumer-grade panel is discontinued after a short period, the equipment manufacturer may need to redesign the mounting structure, cable, controller, touch assembly, and software configuration.

An industrial panel with a controlled lifecycle and documented revision history reduces this risk. The supplier should also identify possible alternatives before the original model reaches end of life.

Reliability is not limited to the LCD cell. LED backlight life, controller temperature, connector quality, cable retention, touch stability, power design, and enclosure ventilation all influence the operating life of the display assembly. Related engineering considerations can be found in Why Is Reliability Important for AI Server Displays?.

How Should the Selected Technology Be Validated?

Validation should use the final or representative host computer, video cable, controller, touchscreen, cover glass, power supply, and enclosure. Testing should include native resolution, scaling, startup, power cycling, sleep recovery, maximum brightness, continuous operation, touch accuracy, glove performance, temperature, ESD, EMC, and cleaning.

The equipment software should be checked page by page. Engineers should review recipe screens, alarms, image windows, wafer maps, service menus, multilingual text, and access-control dialogs. Small scaling problems that are invisible on the desktop can become serious when they hide a machine control or alarm message.
