GV215FHB-N14-1000 BOE 21.5" high brightness outdoor LCD

No.GV215FHB-N14-1000

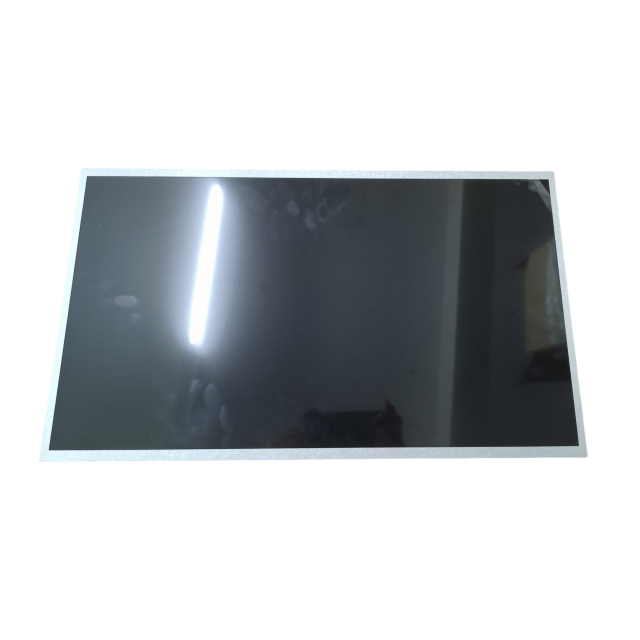

GV215FHB-N14 is a 21.5" diagonal a-Si TFT-LCD display panel product from BOE, with WLED backlight which makes the lcd display readable in sunlight, without touch screen but capacitive TP is customizable.
Luminance
1000 cd/m²
Designed For
Industrial, Digital Signage
Touch Panel
Without, support customization
Display Size:
21.5"
Aspect Ratio:
16:9
Resolution:
1920 × 1080
1080 × 1920
Luminance:
1000 nits
500 nits
250 nits
  • GV215FHB-N14-1000 BOE 21.5" high brightness outdoor LCD
  • GV215FHB-N14-1000 BOE 21.5" high brightness outdoor LCD
  • GV215FHB-N14-1000 BOE 21.5" high brightness outdoor LCD
Description
GV215FHB-N14 is a 21.5" diagonal a-Si TFT-LCD display panel product from BOE, with WLED backlight which makes the lcd display readable in sunlight, without touch screen but capacitive TP is customizable.

It features an operating temperature range of -20 ~ 85°C , a storage temperature range of -30 ~ 85°C . It's general features are summarized in the following: Landscape / Portrait, Matte . Based on its features, we recommend that this model be applied to Industrial, Digital Signage etc. Built-in 6 source + 3 gate chips driver IC.

If you want to embed the LCD in your future product, we strongly recommend that you should contact with BOE or XIANHENG to learn lateast production and specification detail of GV215FHB-N14.


Brand BOE
Model P/N GV215FHB-N14-1000
Diagonal Size 21.5"
Panel Type a-Si TFT-LCD Module
Resolution 1920(RGB)×1080, FHD  102PPI
Pixel Format RGB Vertical Stripe
Active Area 476.64(W)×268.11(H) mm
Bezel Opening -
Outline Dim. 487.2(W)×281(H)×1.32(D) mm
Luminance 1000 cd/m²
View Direction Symmetry
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Plate Thickness 0.50+0.50 mm
Support Color 16.7M   74% NTSC
Weight 392g (Typ.)
Frame Rate 60Hz
Treatment Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 14 (Typ.)(G to G)
Operating Mode ADS, Normally Black, Transmissive
Transmittance 3.7% (Typ.)(with Polarizer)
Light Source WLED
Designed For Industrial Digital Signage
Touch Panel Without
D-IC Detail COF Built-in 6 source + 3 gate chips
Interface Type LVDS (2 ch, 8-bit) 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: -20 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
