MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits

No.MV315QUM-N61
MV315QUM-N61 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE, with an integral WLED backlight system, without backlight driver, without touch screen.
$100.00
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits
  • MV315QUM-N61 BOE 31.5 inch 4K Ultra HD LCM with 350 nits

Description

MV315QUM-N61 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen.


It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, 10 bit, Matte , 3-side borderless. Based on its features, we recommend that this model be applied to Desktop Monitor etc.

If you want to embed the LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG to learn lateast production and specification detail of MV315QUM-N61.

Features
 Reverse Type
 4 lane eDP Interface with 5.4Gbps Link Rates
 10bit (8bit+A-FRC) color depth, display 1.07B colors
 Incorporated edge type back-light (LED)
 Compatible with sRGB Matching Ratio 99%( Min.),@CIE 1931
 High luminance and contrast ratio, low reflection and wide viewing angle
 DE (Data Enable) only
 RoHS/Halogen Free
 ES8.0/TCO8.0/CEL1/CEC compliant
 Gamma Correction

Application
 Desktop Type of PC & Workstation Use
 Slim-Size Display for Stand-alone Monitor
 Display Terminals for Control System
 Monitors for Process Controller

Brand BOE
Model P/N MV315QUM-N61
Diagonal Size 32.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 3840(RGB)×2160, UHD  139PPI
Pixel Format RGB Vertical Stripe
Active Area 697.306(W)×392.234(H) mm
Bezel Opening -

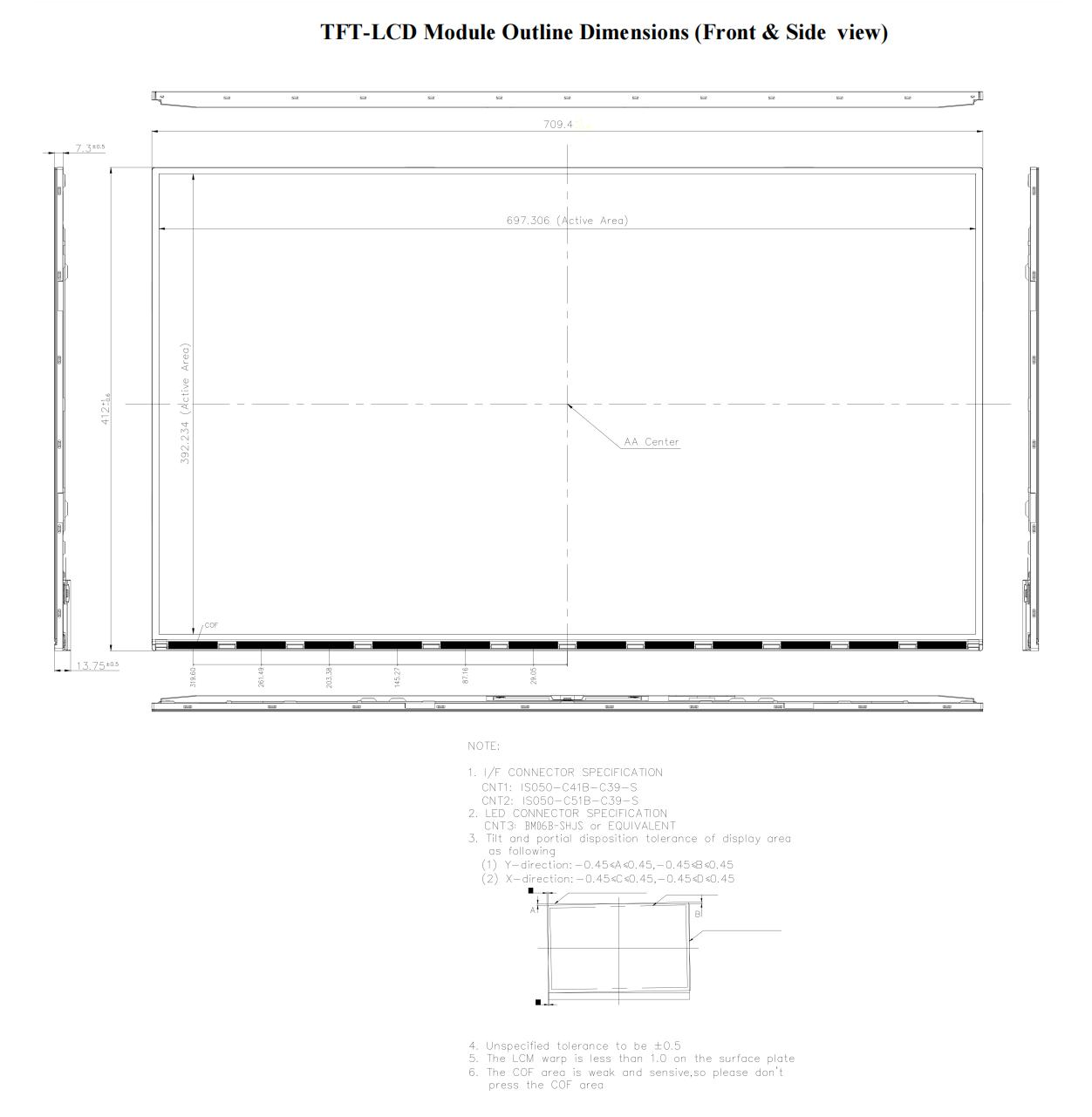

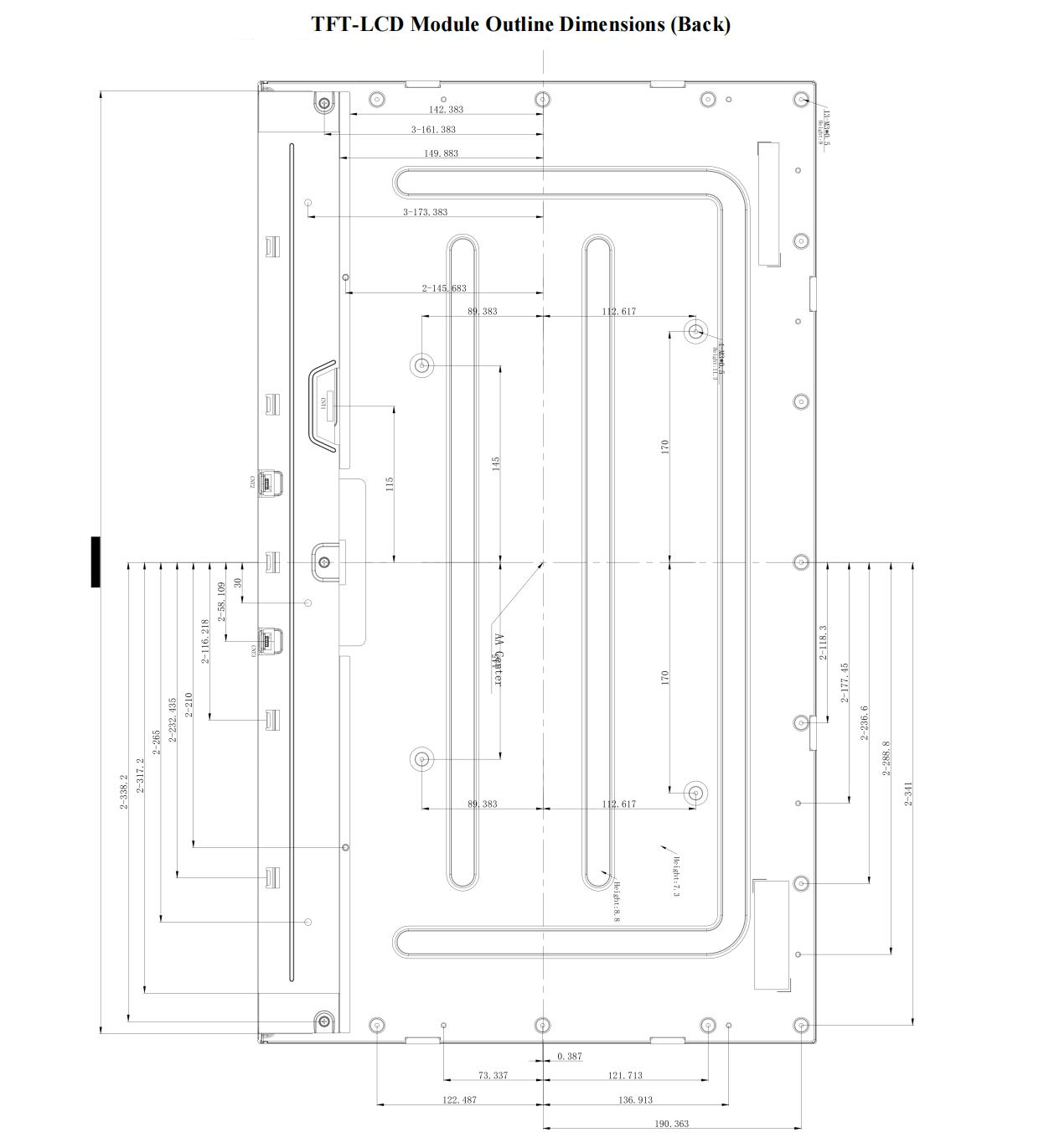

Outline Size 709.4(W)×412(H) ×14.25(D) mm
Brightness 350 cd/m² (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on Symmetry
Display Colors 1.07B   100% sRGB
Frequency 60Hz
Weight -
Surface Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio 1000:1 (Typ.) (TM)
Display Mode ADS, Normally Black, Transmissive
Response Time 14 (Typ.)(G to G)

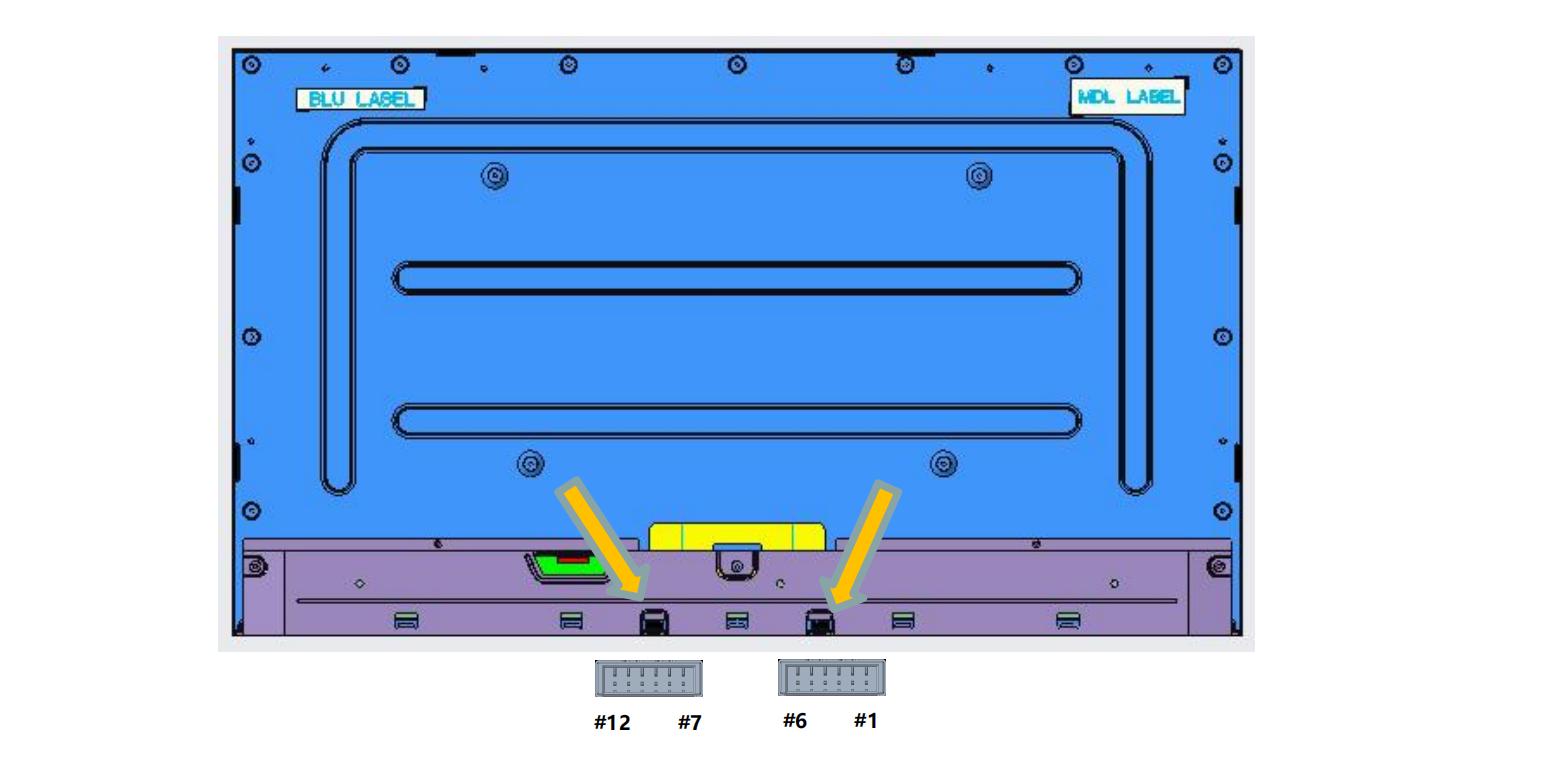

Lamp Type 4 strings × 2CN WLED , 30K hours , Without Driver
Touch Screen Without
Application Desktop Monitor

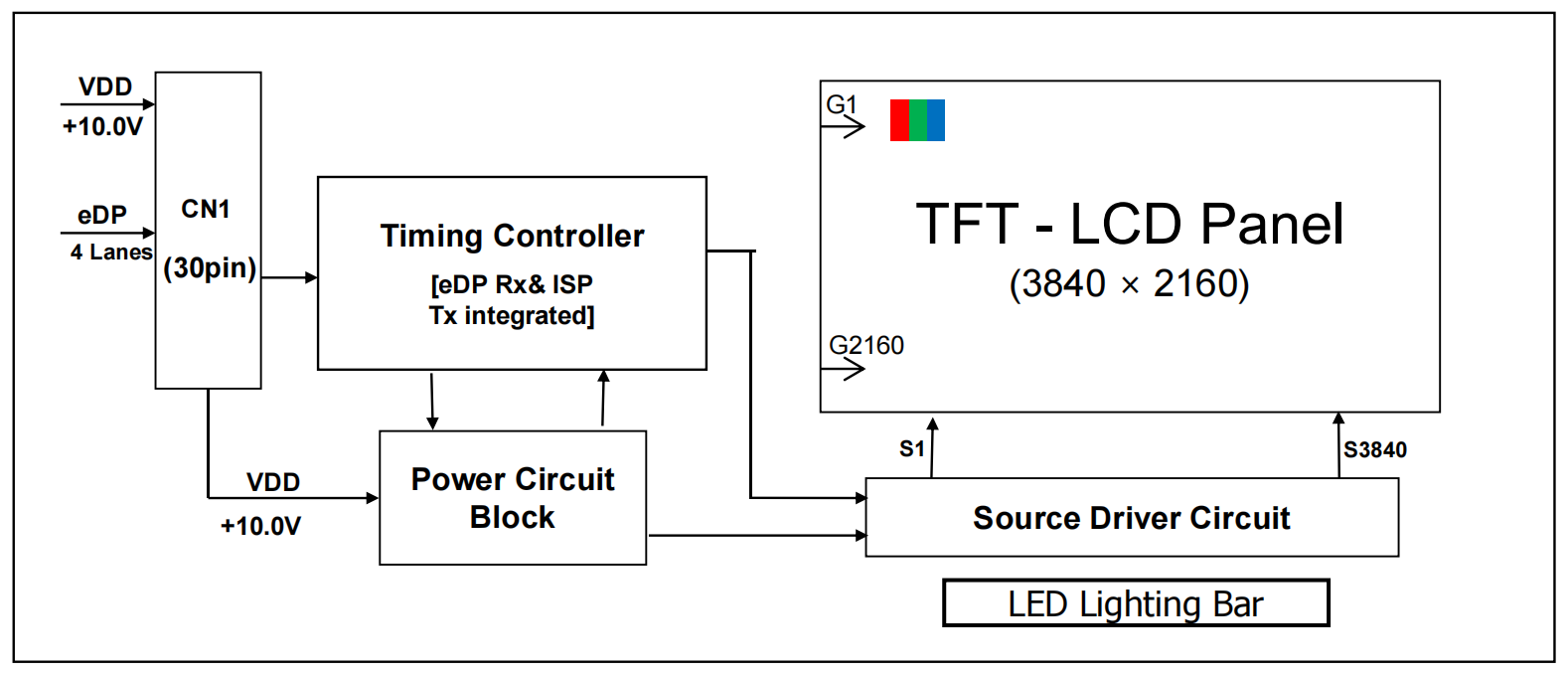

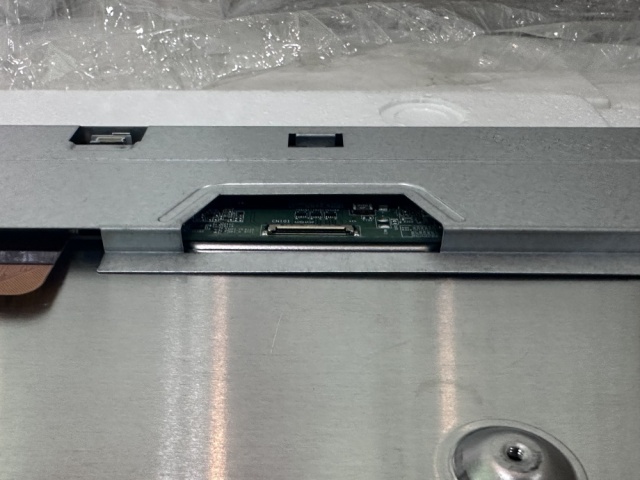

Signal Interface eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector
Input Voltage 10.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
