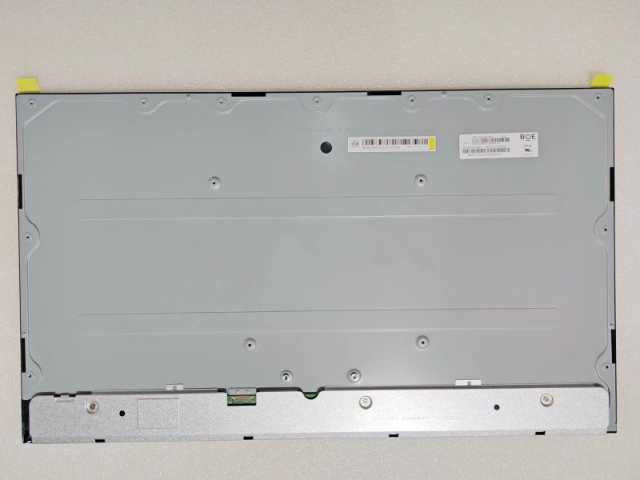

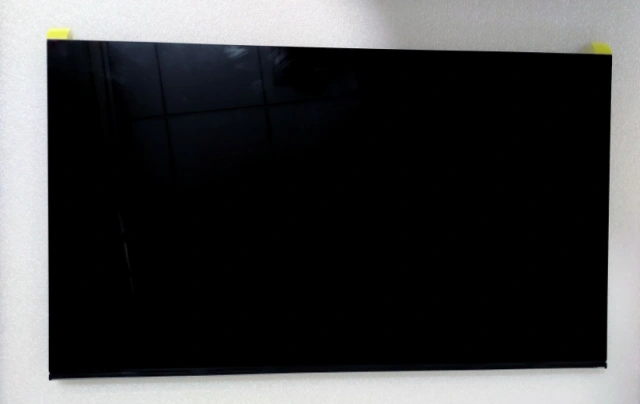

BOE Technology Group Co., Ltd. (hereafter called BOE) MV270QUM-N60 (Alias: MV270QUM-N60-AD30) is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: DCI-P3, sRGB, 3-side boderless, WLED Backlight, Reverse I/F, 10 bit, Matte , 3-side Borderless, sRGB, ES 8.0 compliant, Reverse type, LBL. Based on its features, we recommend that this model be applied to Desktop Monitor etc.
If you want to embed MV270QUM-N60 LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG to learn lateast production and specification detail.
| Brand | BOE |
| Model P/N | MV270QUM-N60 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline Dim. | 608.8(H)×353.3(V)×13.9(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Mode | HADS, Normally Black, Transmissive |
| Support Color | 1.07B 100% sRGB |
| Light Source | WLED [23S4P] , 30K hours , W/O Driver |
| Weight | 3.26Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector |
| Power Supply | 10.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
