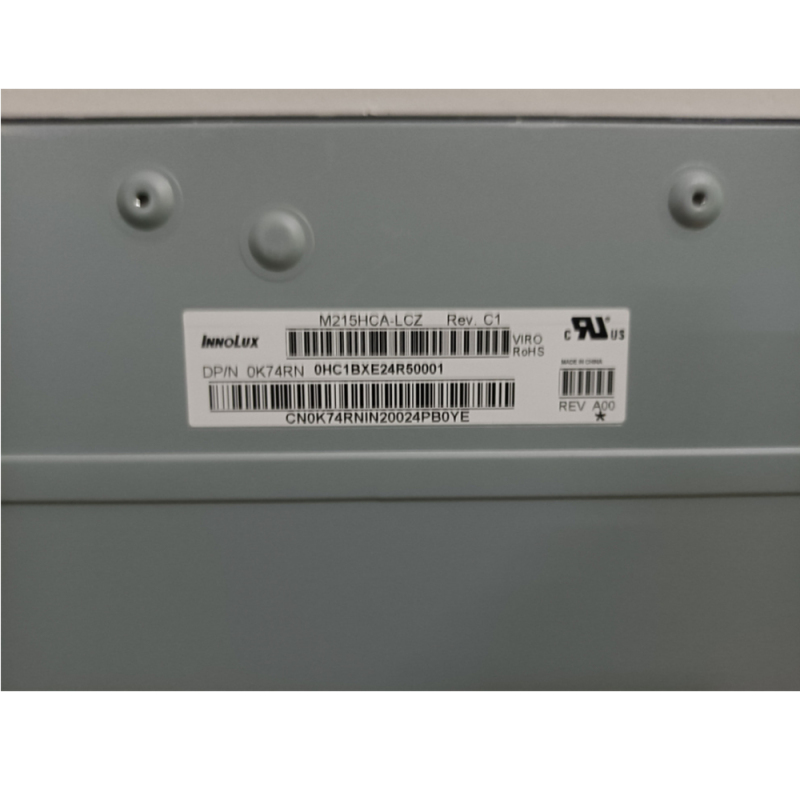

The M215HCA-LCZ is a 21.5 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless; TCO 8.0 compliance; Low Blue Light Compliance. Based on its features, we recommend that this model be applied to Desktop Monitor etc.
If you want to embed M215HCA-LCZ LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.
Brand | Innolux |
Model | M215HCA-LCZ |
Diagonal Size | 21.5 inch |
Type | a-Si TFT-LCD, LCM |
Pixel Format | 1920(RGB)×1080 [FHD] 102PPI |
Configuration | RGB Vertical Stripe |
Active Area | 476.064(H)×267.786(V) mm |
Outline Dim. | 484.46(H)×284.49(V) ×12.9(D) mm |
Bezel Area | - |
Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | SymmetryResponse Time14 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
Operating Mode | AAS, Normally Black, Transmissive |
Support Color | 16.7M 100% sRGB |
Light Source | WLED [4 strings] , 30K hours , W/O Driver |
Weight | 1.82/1.91Kgs (Typ./Max.) |
Designed For | Desktop Monitor |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Power Supply | 5.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
