The LG Display LM190E0A-SLE1 is a 19.0-inch IPS LCD module with 1280 × 1024 SXGA resolution and a 5:4 aspect ratio. It is a practical candidate when an existing monitor or equipment interface uses a near-square viewing window and changing to a widescreen panel would require a new enclosure or interface layout.
The panel combines 250 cd/m² typical brightness, a 1000:1 typical contrast ratio and wide IPS viewing angles. A 30-pin, dual-channel 8-bit LVDS connection and a 5.0 V typical panel supply define the starting point for controller selection. White LED backlighting is included; its driver must be provided separately.
| Parameter | Value |
|---|---|
| Manufacturer | LG Display |
| Model number | LM190E0A-SLE1 |
| Diagonal size | 19.0 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1280(RGB)×1024, SXGA, 5:4 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 376.32(W)×301.056(H) mm |
| Outline dimensions | 396(W)×324(H)×10.4(D) mm |
| Panel weight | 1.46/1.54 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | IPS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor, Industrial, Healthcare |
| Listed power consumption | 8.28 W (Typ.) |
| Backlight and listed lifetime | 19S2P WLED, 30K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins 1.0 mm Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
Reference applications include desktop monitors, industrial equipment and healthcare equipment. For a legacy control station, the 5:4 format can preserve the proportions of an existing screen design. Check the required screen opening against the 376.32 × 301.056 mm active area before selecting a bezel or touch overlay.

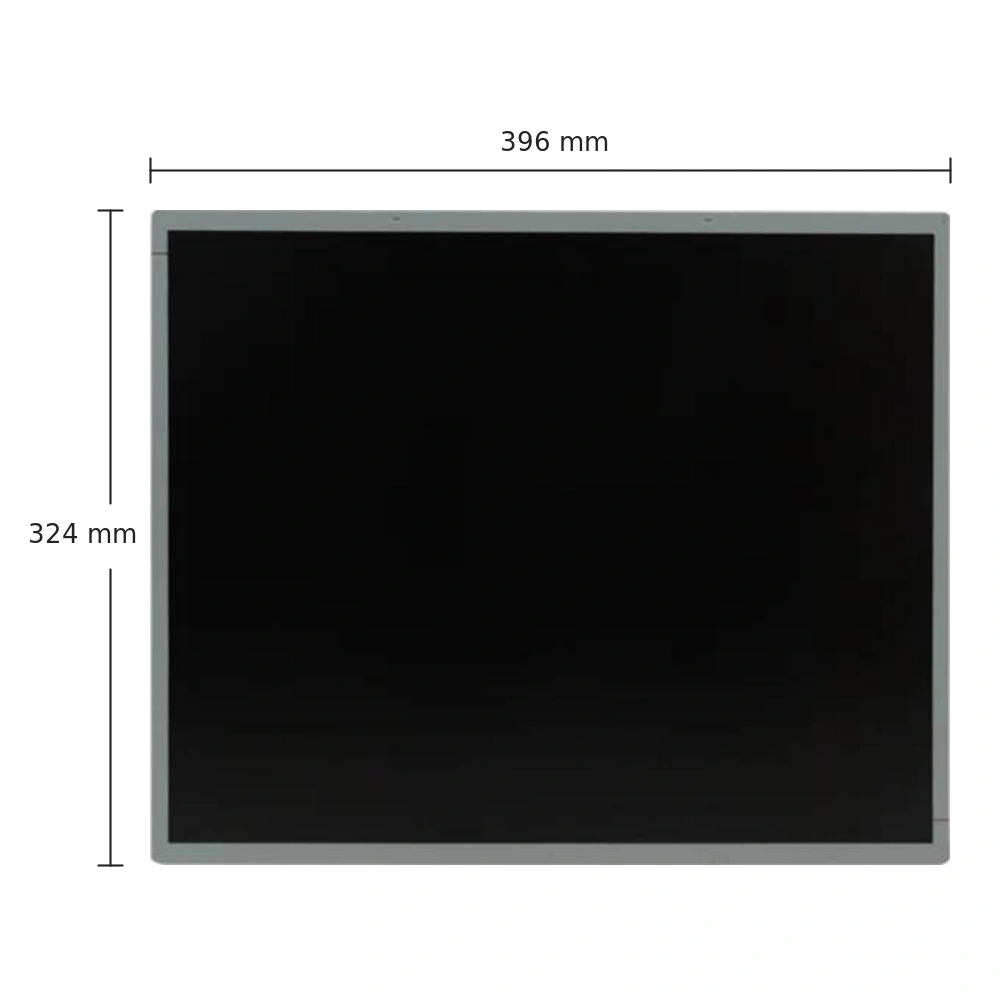

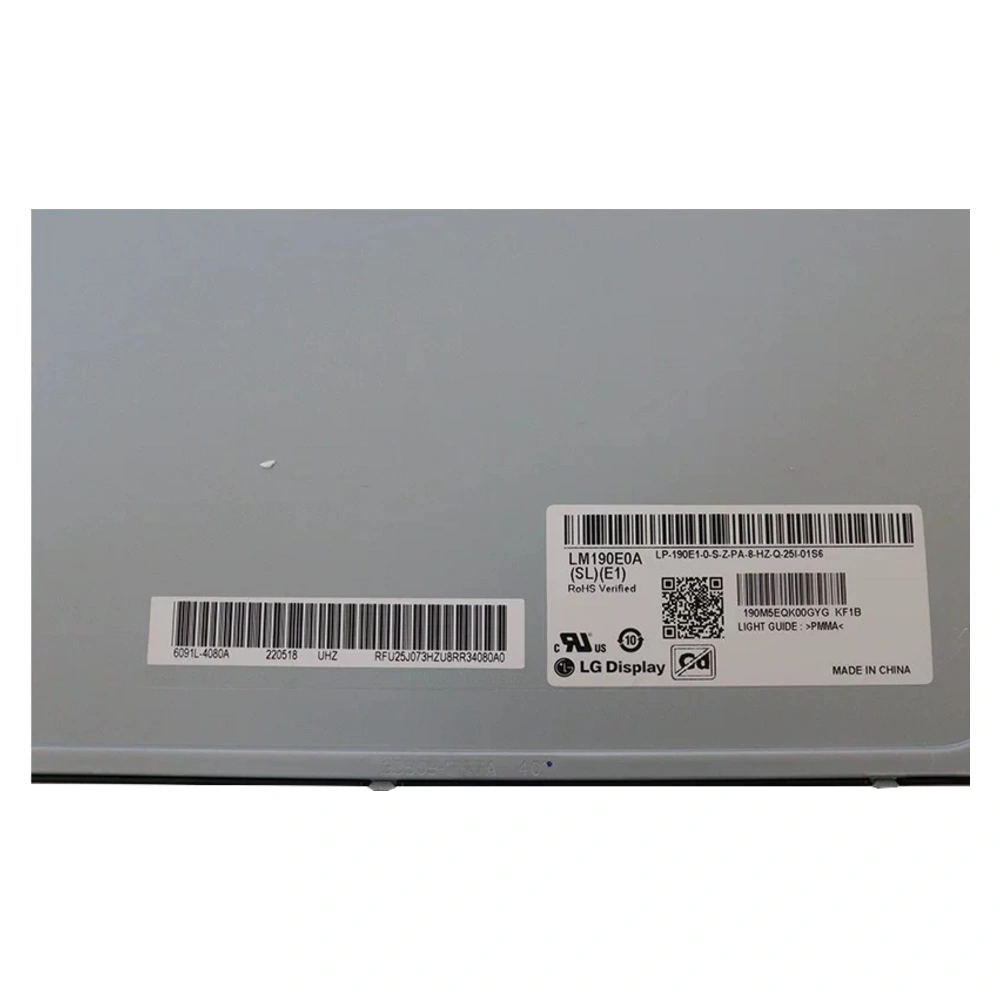

Plan around the 396 × 324 × 10.4 mm module outline, connector location and cable exit. The listed operating range is 0 to 50 °C, so an equipment enclosure must keep the panel within that range. Provide the existing panel label, controller details and mechanical drawing when requesting a replacement review.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
The panel uses a 5:4 SXGA format. Its 1280 × 1024 image area differs from 16:9 displays, so confirm the equipment opening, image scaling and mounting geometry when considering a replacement.
The panel input is dual-channel LVDS. An HDMI source requires a compatible LCD controller, the correct LVDS cable and a separate LED backlight driver. Ask for a matched configuration using the exact panel suffix.
The reference panel has no integrated touchscreen. Ask XIANHENG to review a separate PCAP or resistive touch assembly against the active area, mounting space and intended operating conditions.
Specifications refer to the LM190E0A-SLE1 suffix. Confirm timing, connector pin assignment and the supplied panel revision before integration.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
