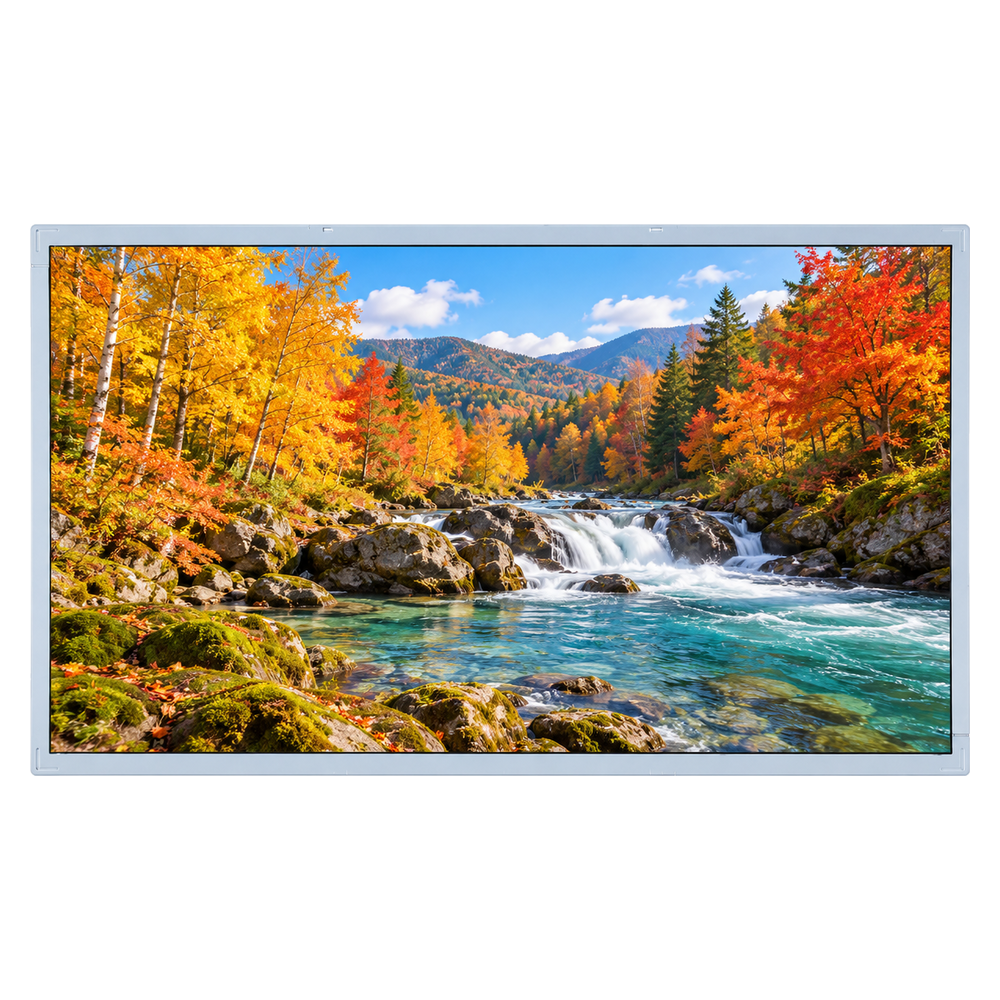

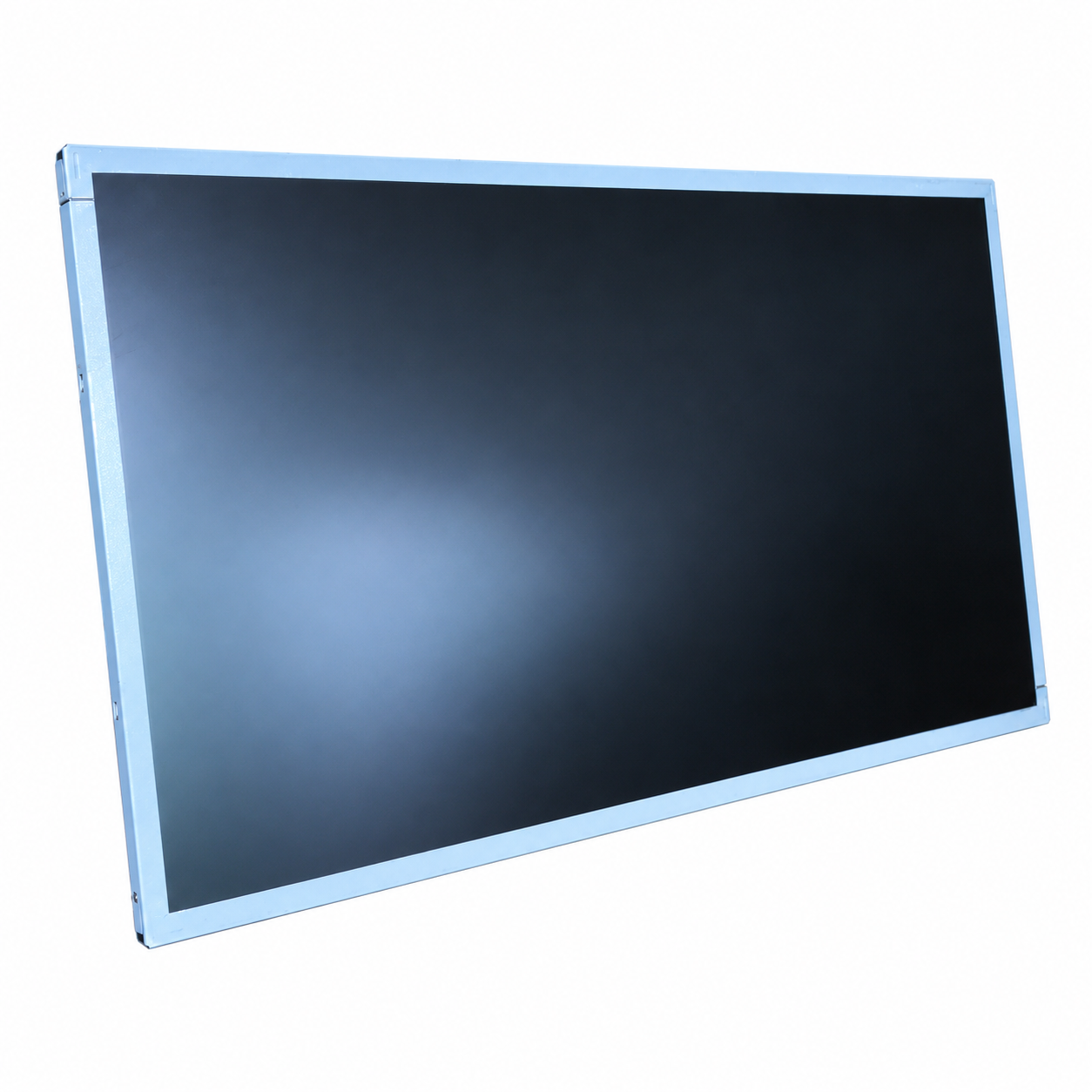

The LG Display LM215WF3-SLS2 is a 21.5-inch IPS LCD module with 1920 × 1080 resolution. It combines a familiar 16:9 format with 250 cd/m² typical brightness and 89° viewing-angle references in all four directions at CR ≥ 10, making it a candidate for indoor equipment and monitor designs viewed from different positions.
Its 30-pin LVDS input carries dual-channel 8-bit data, and the typical panel supply is 5.0 V. The collected SLS2 reference lists 9.8 W typical power consumption. A white LED backlight is incorporated, while a backlight driver and touch overlay must be addressed separately in the assembly design.
| Parameter | Value |
|---|---|
| Manufacturer | LG Display |
| Model number | LM215WF3-SLS2 |
| Diagonal size | 21.5 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 476.064(W)×267.786(H) mm |
| Outline dimensions | 497.6(W)×292.2(H)×11(D) mm |
| Panel weight | 1.69/1.77 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | IPS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor, Industrial, Healthcare |
| Listed power consumption | 9.8 W (Typ.) |

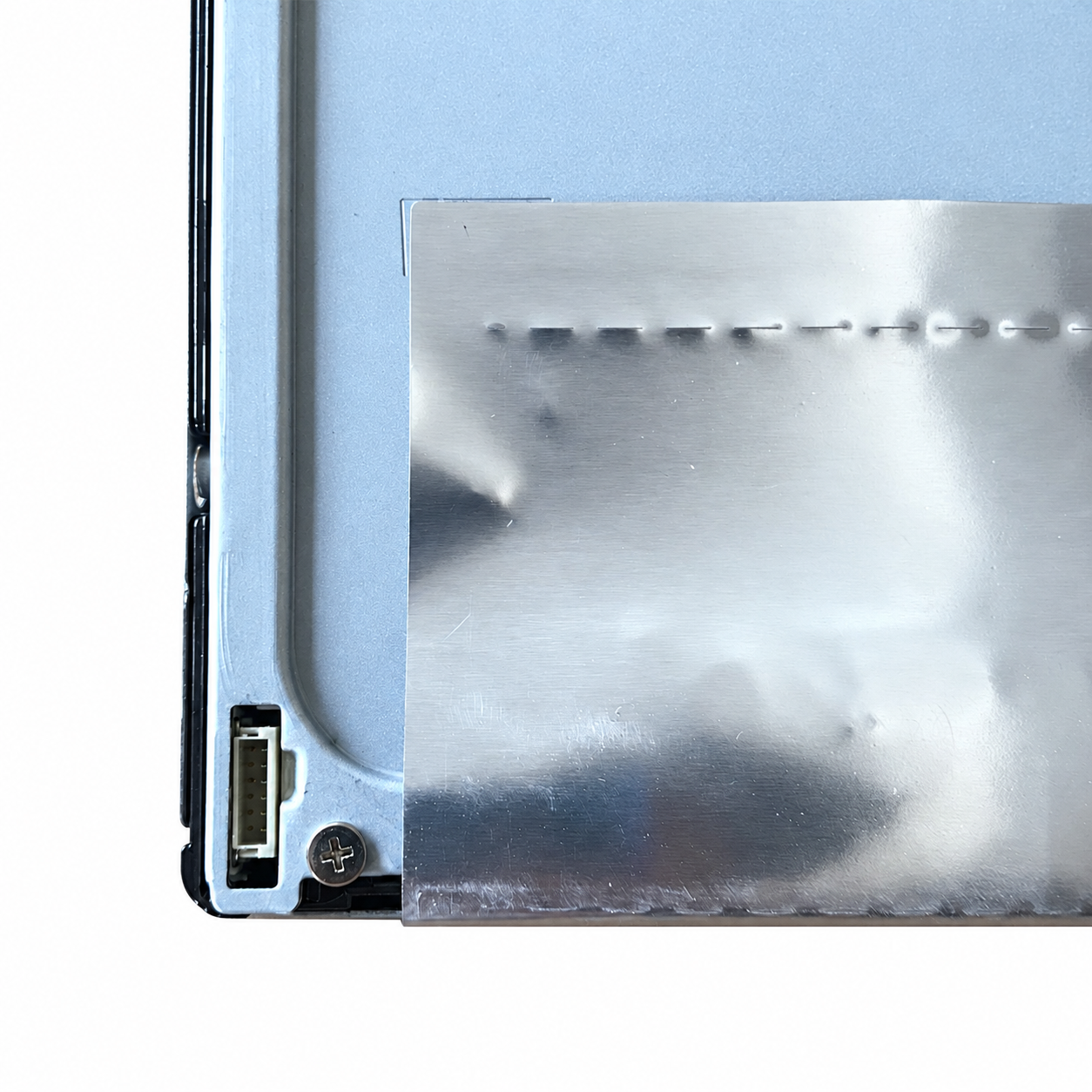

| Backlight and listed lifetime | 17S2P WLED, 30K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |

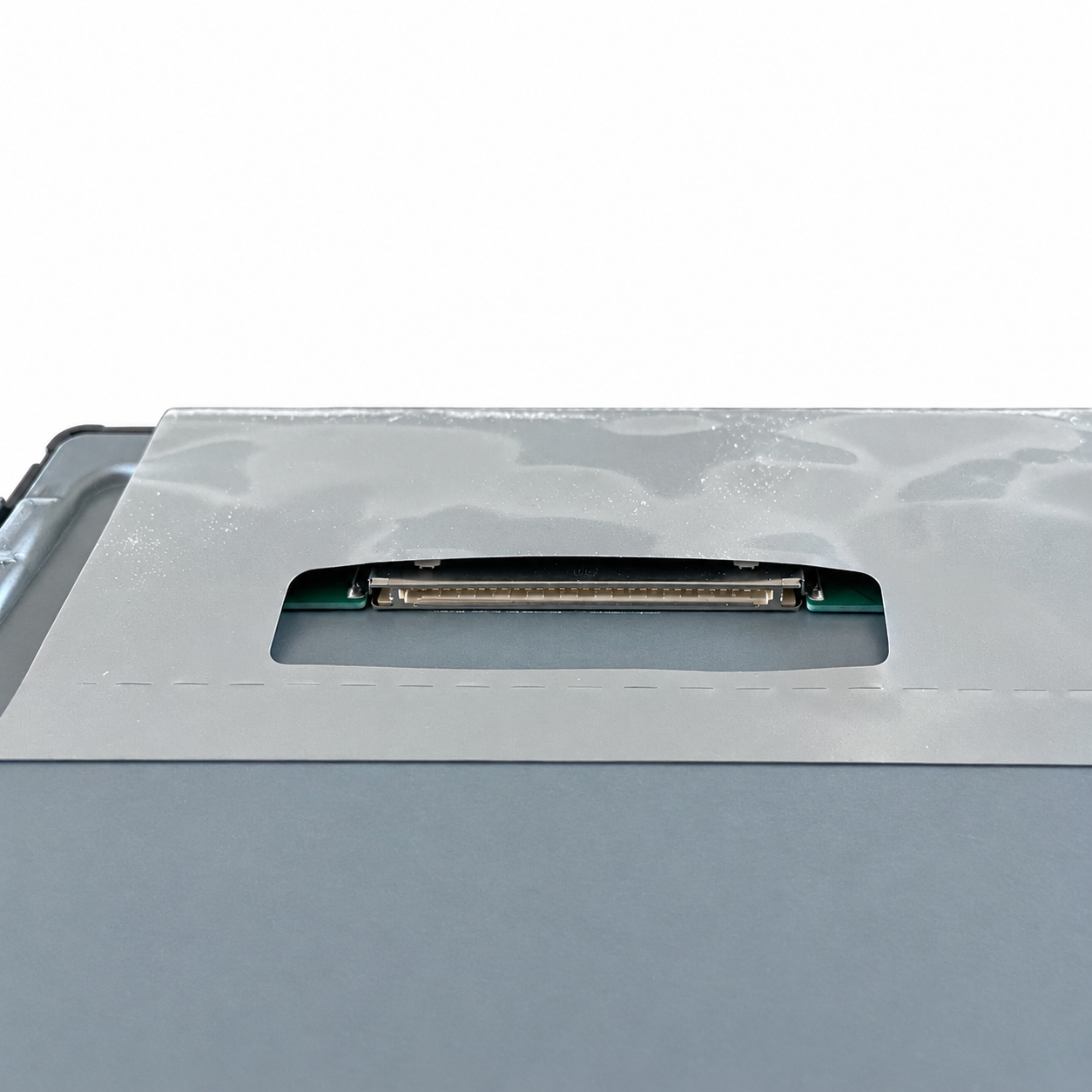

| Signal interface | LVDS (2 ch, 8-bit), 30 pins 1.0 mm Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
Reference applications include desktop monitors, industrial systems and healthcare equipment. The 476.064 × 267.786 mm active area can be used to align display content, cover-glass printing and bezel dimensions. For a touch display project, specify the usable touch area together with the required front-glass dimensions.
Allow for the 497.6 × 292.2 × 11 mm module outline and check the rear connector position before routing cables. Keep the exact SLS2 suffix in the bill of materials. A shared outline with SLS1 does not confirm identical electrical or backlight behavior, and the final controller timing should be checked for the actual panel revision.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
The collected references list 9.8 W typical for SLS2 and 11.05 W typical for SLS1. These reference figures help distinguish the models; compare the applicable datasheets and test conditions before making a system power claim.
The reference module has no integrated touchscreen. A separate touch assembly can be reviewed according to controller compatibility, cover-glass design, mounting clearance and the intended use.
The listed panel operating range is 0 to 50 °C, with storage from -20 to 60 °C. Base thermal design on conditions at the panel inside the enclosure, including heat from the backlight and controller.
Specifications are for SLS2. Confirm the exact suffix, panel revision and timing requirements when replacing or integrating a display.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
