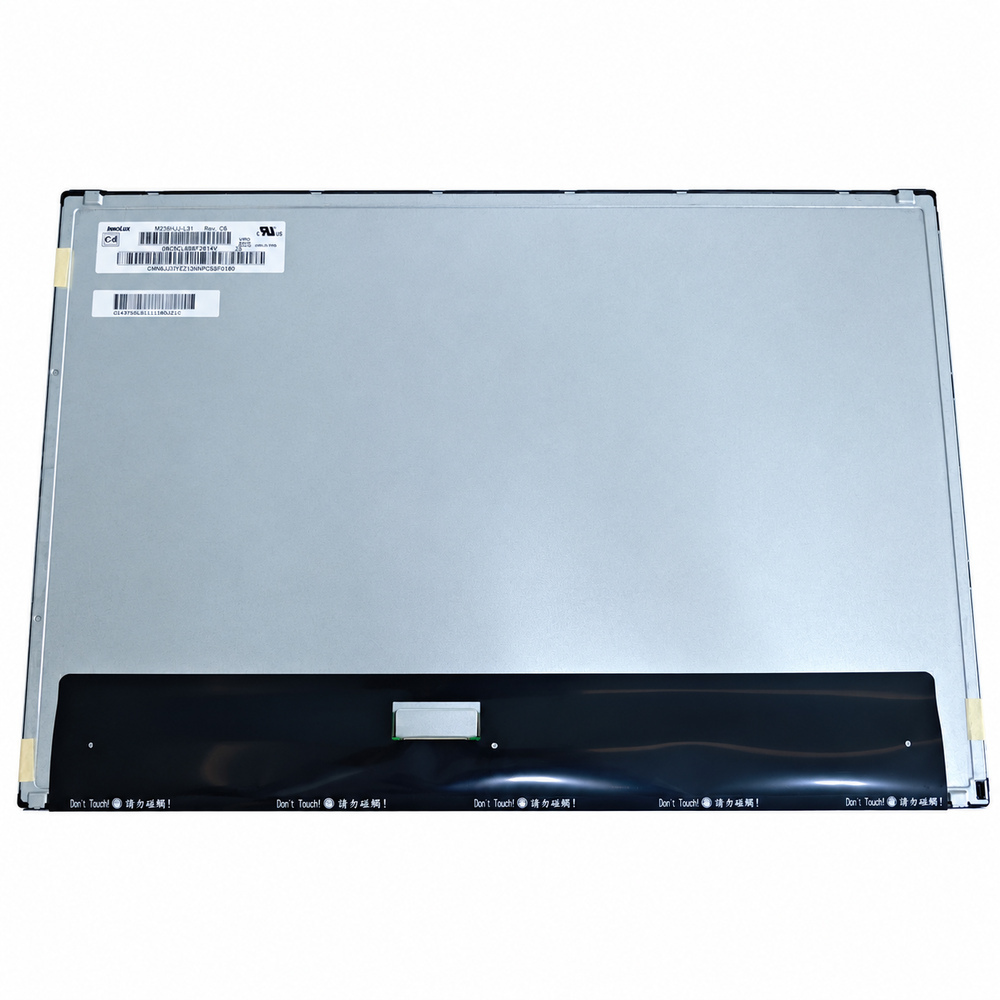

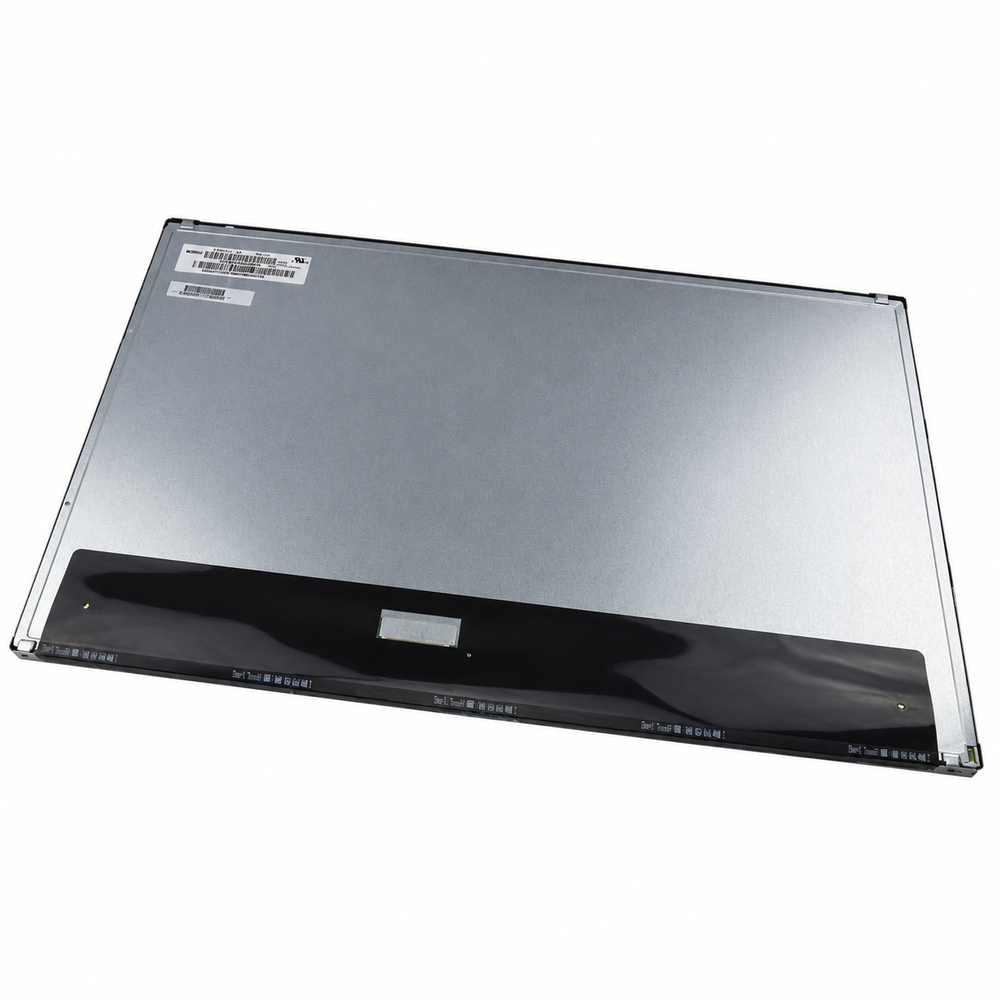

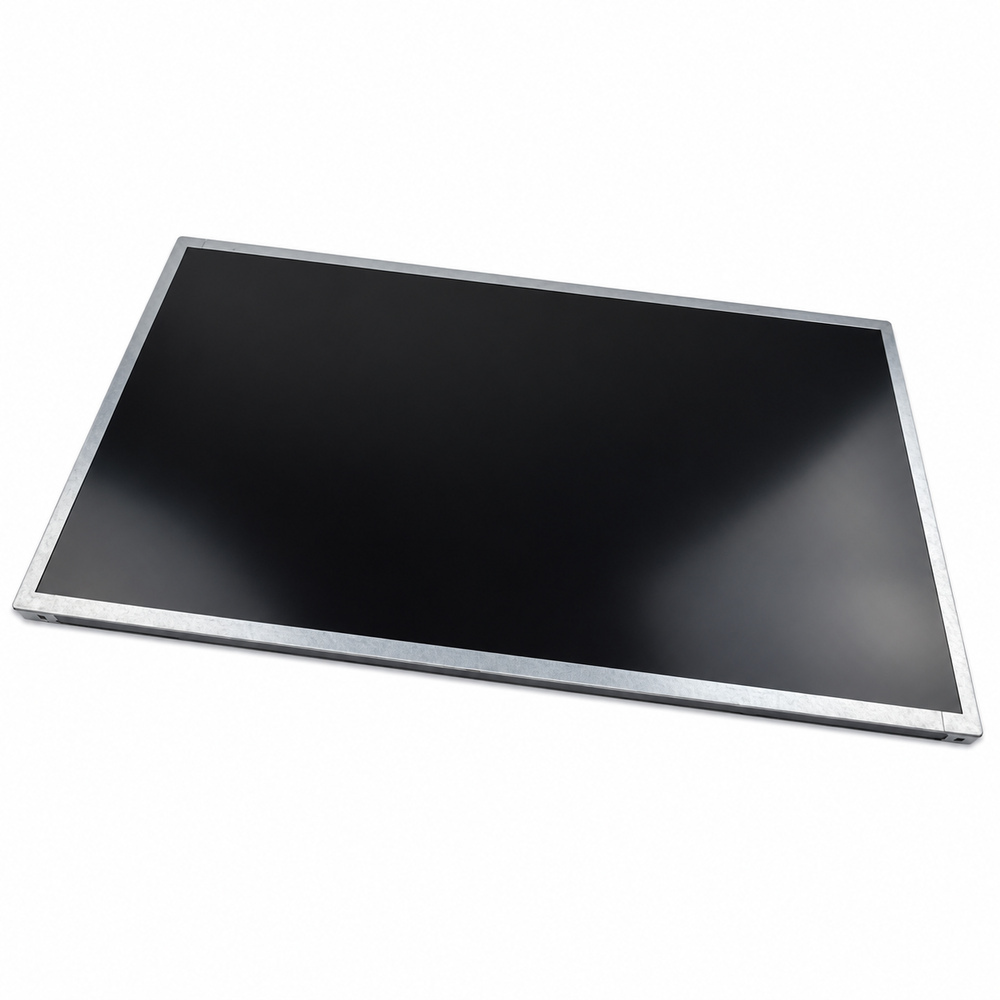

The Innolux M236HJJ-L31 is a 23.6-inch MVA LCD module with 1920 × 1080 Full HD resolution. The collected structured reference lists 250 cd/m² typical brightness, a 3000:1 typical contrast ratio and a 521.28 × 293.22 mm active area for desktop-monitor applications.
Its dual-channel 8-bit LVDS interface uses a 30-pin connector, with a 5.0 V typical panel supply. The white LED backlight requires a separate driver. The collected technical values reference Rev.C1 Ver3.0; identifying the actual panel revision is therefore a key part of replacement sourcing.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M236HJJ-L31 |
| Diagonal size | 23.6 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 521.28×293.22 mm (H×V) |
| Outline dimensions | 544.8×320.5×11.5 mm (H×V×D); depth Max. |
| Panel weight | 2.31±0.11 kg |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 3000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 20 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | MVA, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor |
| Listed power consumption | 18.35 W (Typ.) |
| Backlight and listed lifetime | 4 strings WLED, 40K hrs, Without Driver |
| Listed refresh rate | Confirm timing for the required revision |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The reference application is desktop monitors. For a replacement assembly, compare the existing image area and mounting drawing with the 544.8 × 320.5 × 11.5 mm outline. Review expected viewing positions, image scaling and the required native signal before selecting a controller or touch overlay.
The collected reference gives 18.35 W typical power consumption, a 20 ms typical gray-to-gray response and a 40,000-hour listed WLED backlight reference. Confirm these values and their measurement conditions against the requested revision. The source also lists newer revision documents separately, which should be checked rather than assumed equivalent.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.

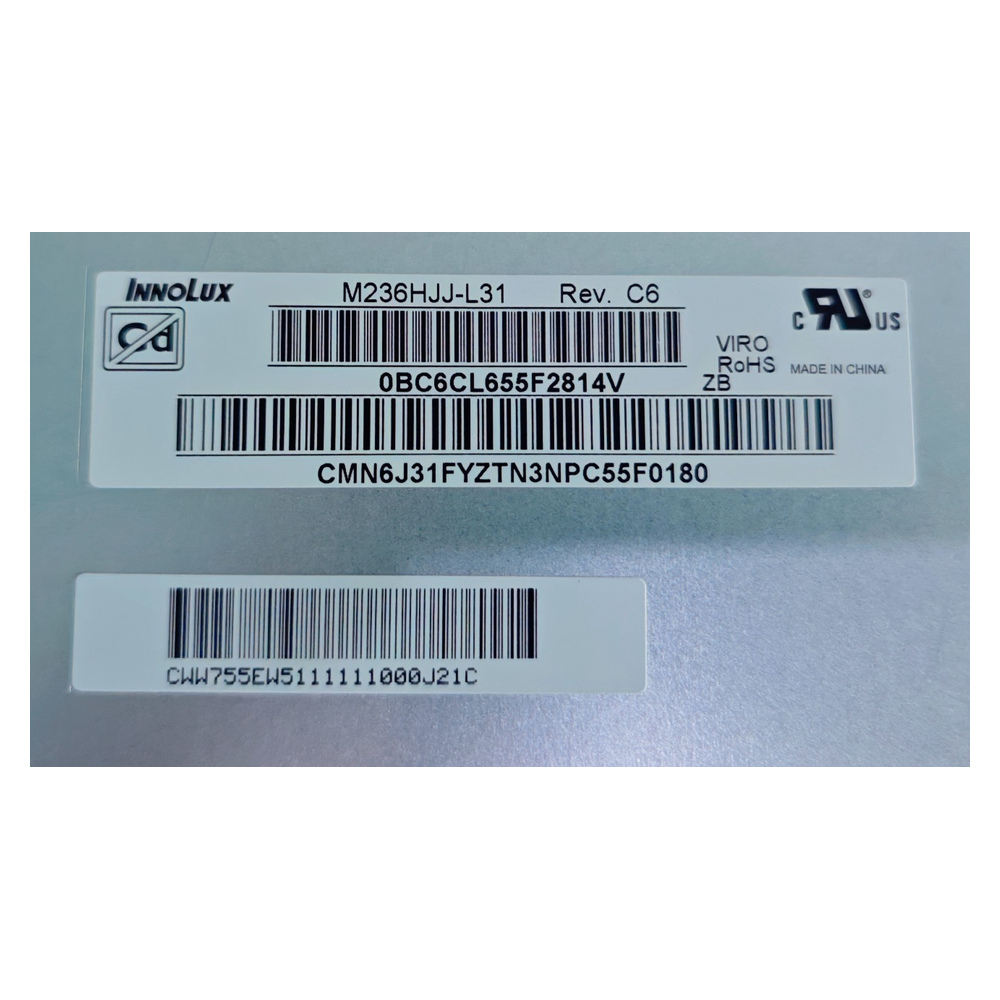

The collected structured values reference Rev.C1 Ver3.0 dated 3 November 2014. Supply may involve another revision, so send the panel-label information and request a comparison with the approved project specification.
