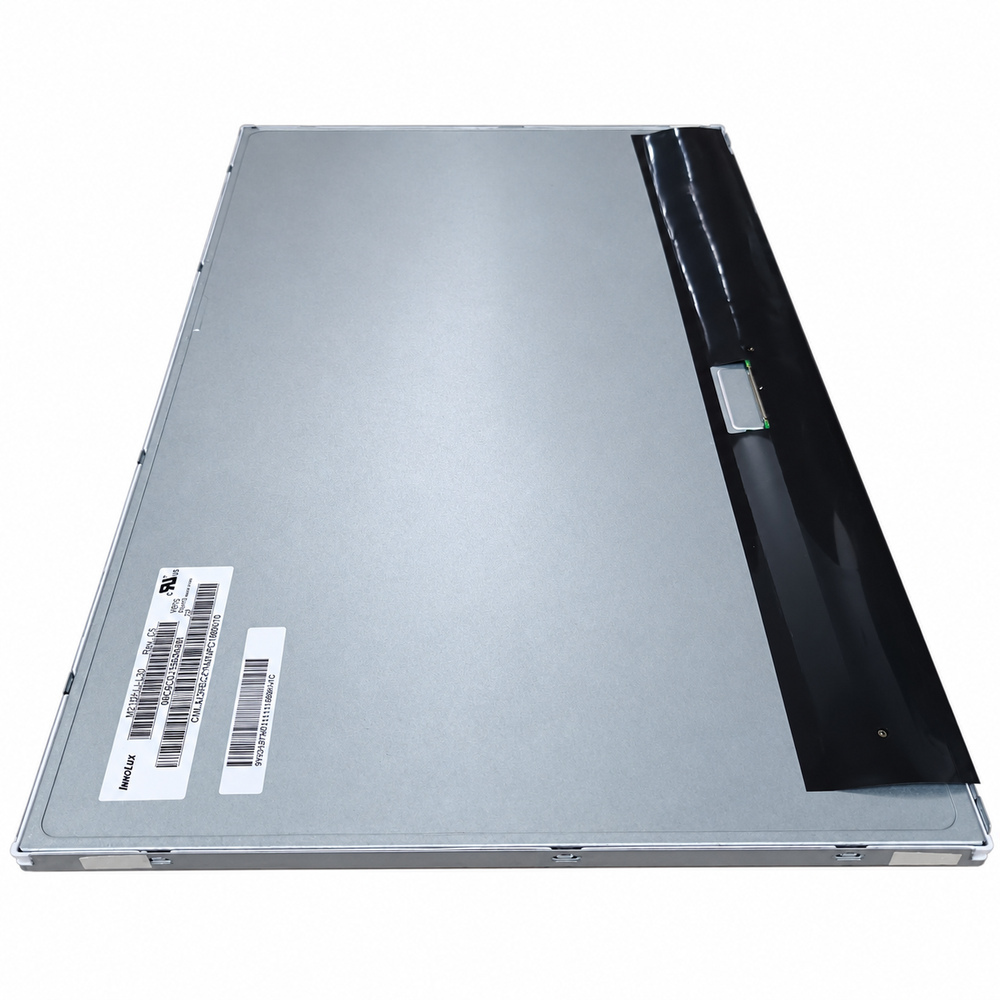

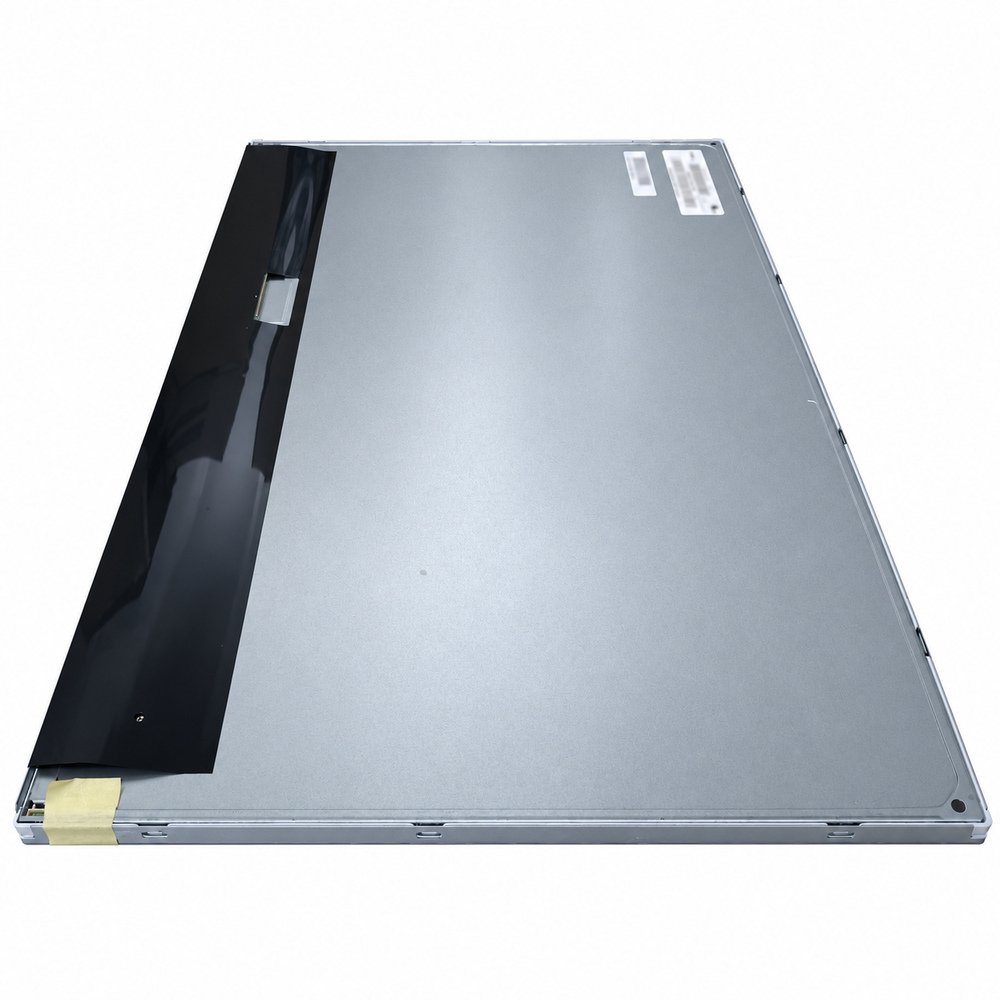

The Innolux M215HJJ-L30 Rev.C5 is a 21.5-inch MVA LCD panel with 1920 × 1080 Full HD resolution. Its collected specification pairs 250 cd/m² typical luminance with a 3000:1 typical contrast ratio and a normally black operating mode, supporting evaluation for monitor and indoor equipment-display projects.

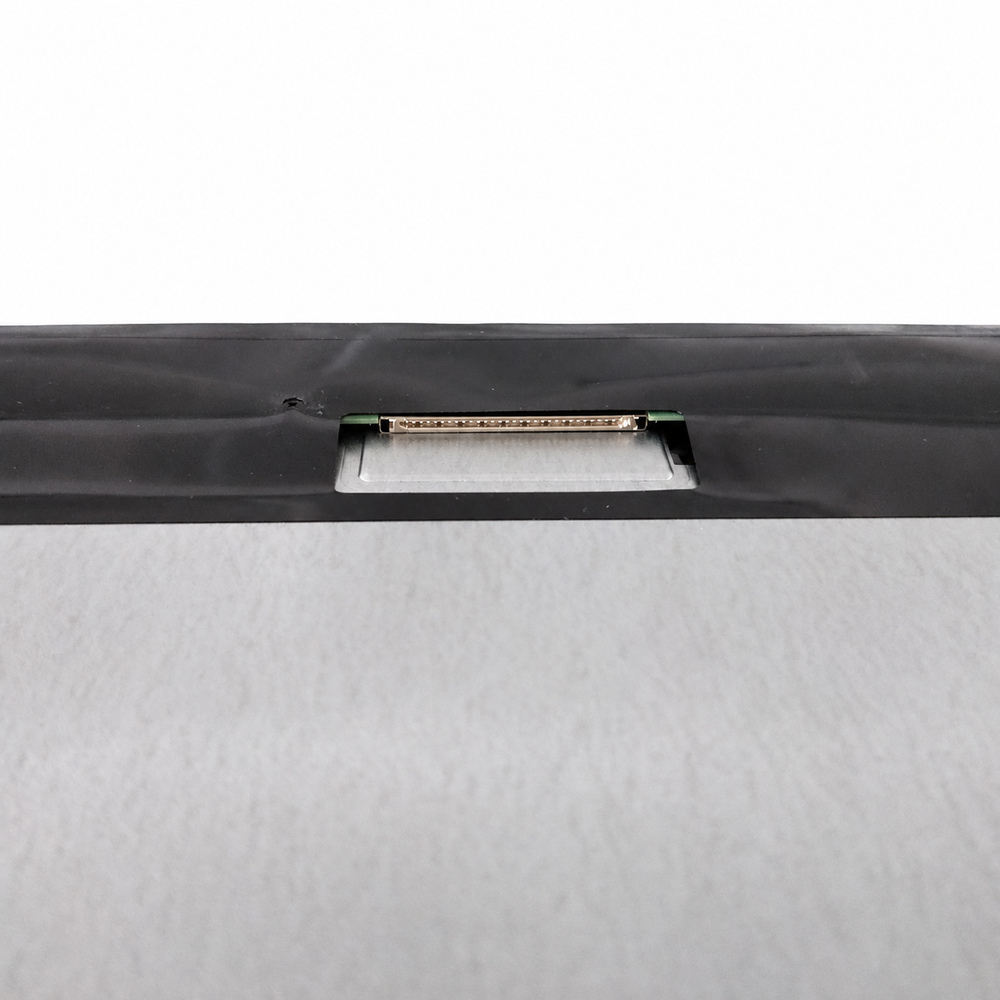

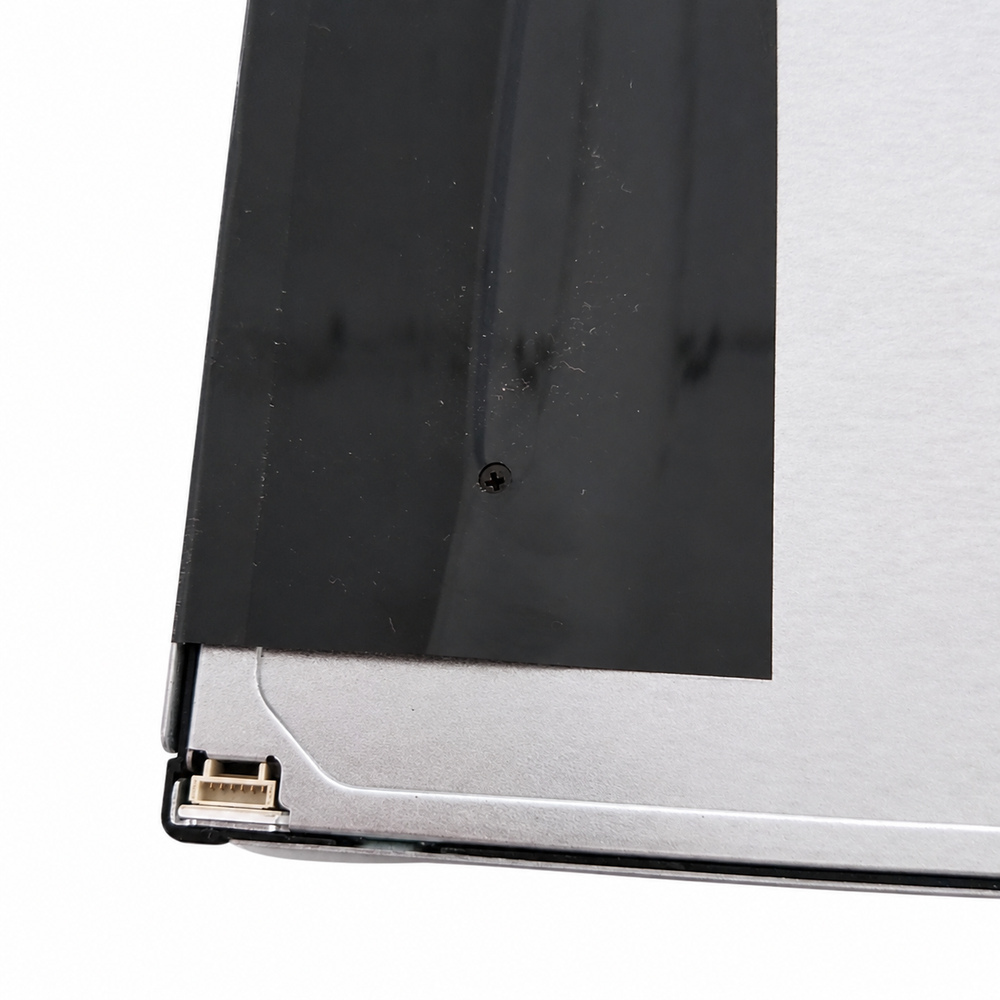

The panel uses dual-channel 8-bit LVDS through a 30-pin connector and a 5.0 V typical supply. Its white LED backlight is included without a driver. The backlight reference lists 40,000 hours; confirm the applicable test conditions when defining the display assembly's maintenance and service requirements.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M215HJJ-L30 Rev.C5 |
| Diagonal size | 21.5 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 476.064×267.786 mm (H×V) |
| Outline dimensions | 495.6×292.2×11.5 mm (H×V×D) |
| Panel weight | 1.80/1.89 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 3000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 20/5 (Typ.)(Tr/Td) |
| Preferred viewing direction | Symmetry |
| Display mode | MVA, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor, Industrial |
| Listed power consumption | 16.42 W (Typ.) |
| Backlight and listed lifetime | 4 strings WLED, 40K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
Reference applications include desktop monitors and industrial systems. The 476.064 × 267.786 mm active area fits a 21.5-inch 16:9 layout, while the 495.6 × 292.2 × 11.5 mm outline defines the module space. Review both before selecting a front opening or comparing a replacement panel.

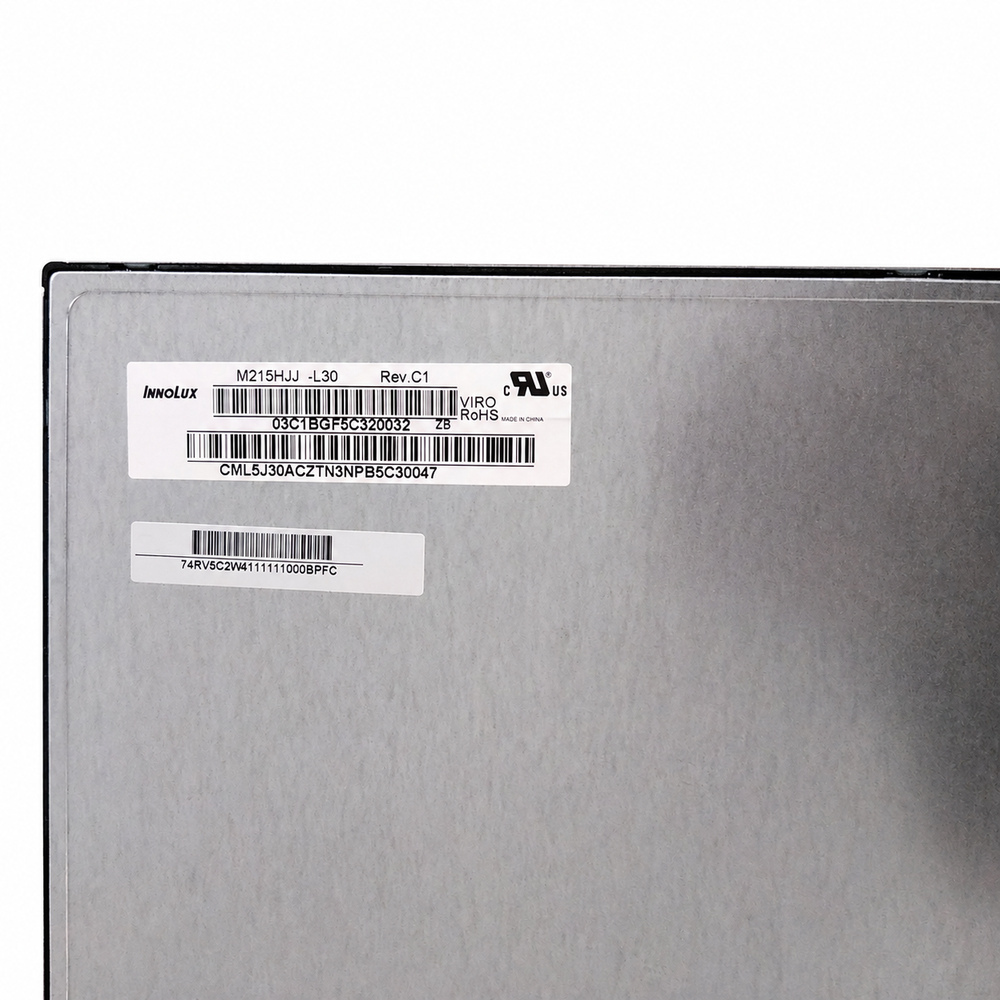

The collected Rev.C5 data gives 16.42 W typical power consumption and a 20/5 ms typical Tr/Td response. Keep rise/fall response definitions consistent when comparing another panel. For an existing machine, provide its panel label and controller information so the revision, signal mapping and backlight supply can be reviewed together.
