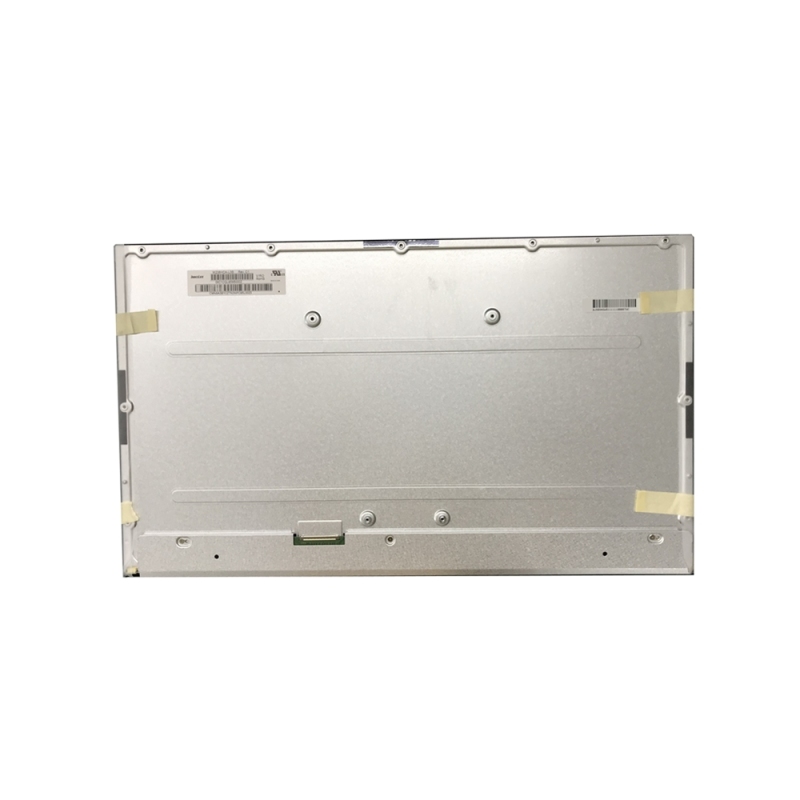

M238HCA-L3B innolux 23.8 inch narrow-edged screen TFT-LCD display module

M238HCA-L3B innolux is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

Innolux M238HCA-L3B is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. M238HCA-L3B supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535(W)×313(H)×13.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.04/2.27/2.38Kgs (Min./Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, M238HCA-L3B can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. M238HCA-L3B utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
