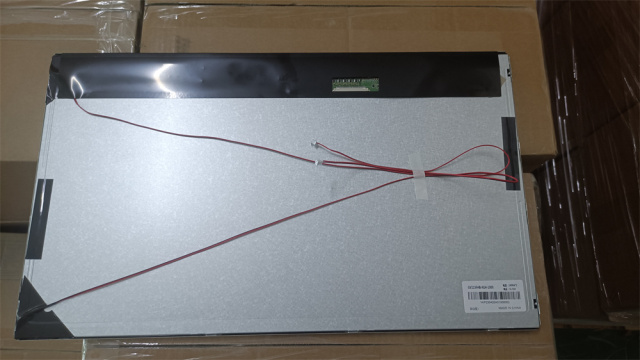

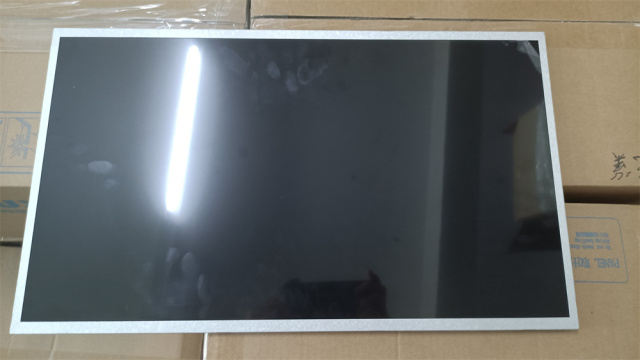

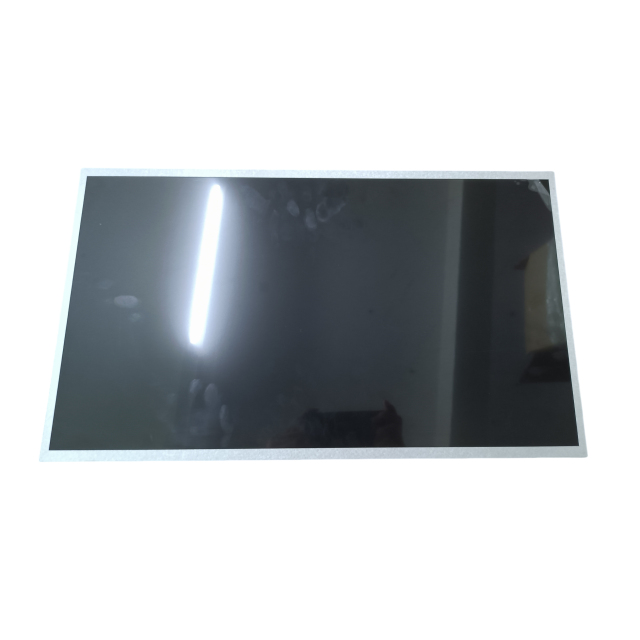

BOE GV215FHB-N14-2000 21.5" High Brightness Industrial TFT-LCD Display

The GV215FHB-N14-2000 is a 21.5-inch a-Si TFT-LCD panel from BOE, designed with an impressive 2000 nits brightness for sunlight-readable applications. With FHD resolution (1920×1080), antiglare coating, and a wide operating temperature range (-20 ~ 85°C), this display is ideal for industrial systems and outdoor digital signage.

General Specifications

Optical Performance

• Luminance: 2000 cd/m² (Sunlight Readable)
• Contrast Ratio: 1000:1 (Typ., TM)
• Viewing Angle: 89°/89°/89°/89° (CR≥10)
• Response Time: 14 ms (Typ., G-to-G)
• Operating Mode: ADS, Normally Black, Transmissive
• Support Colors: 16.7M (74% NTSC)
• Surface Treatment: Antiglare (Haze 25%), Hard coating (3H)
• Transmittance: 3.7% (Typ., with polarizer)

Backlight & Power

• Light Source: WLED
• Interface: LVDS (2 channel, 8-bit), 30-pin connector
• Power Supply: 5.0V (Typ.)
• Driver IC: COF with 6 source + 3 gate chips

Environmental Reliability

• Operating Temperature: -20 ~ 85°C
• Storage Temperature: -30 ~ 85°C

Applications

The GV215FHB-N14-2000 is highly recommended for:

• Outdoor digital signage
• Smart kiosks and ticketing systems
• Industrial control displays
• Transportation information systems
• Rugged Human-Machine Interfaces (HMI)
• Medical and testing equipment

Why Choose GV215FHB-N14-2000?

• Ultra-high brightness (2000 nits) for sunlight readability
• Full HD resolution for sharp, detailed visuals
• Wide temperature range for harsh environments
• Symmetrical wide viewing angles
• Durable antiglare and hard coating surface
• Reliable COF driver IC technology

Ordering Information

If you plan to integrate the GV215FHB-N14-2000 into your next project, please contact BOE or XIANHENG TECH for the latest specifications and availability.
