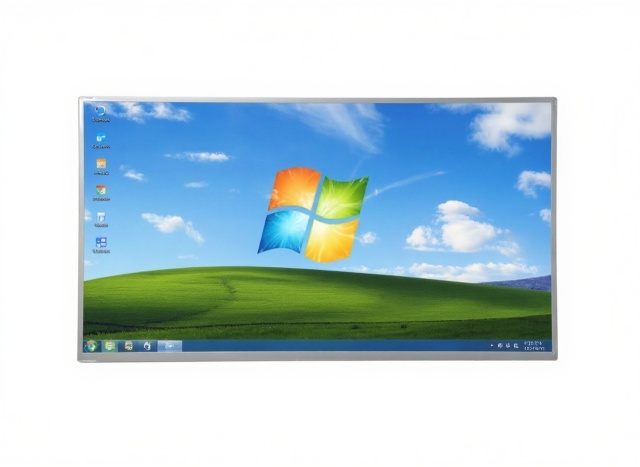

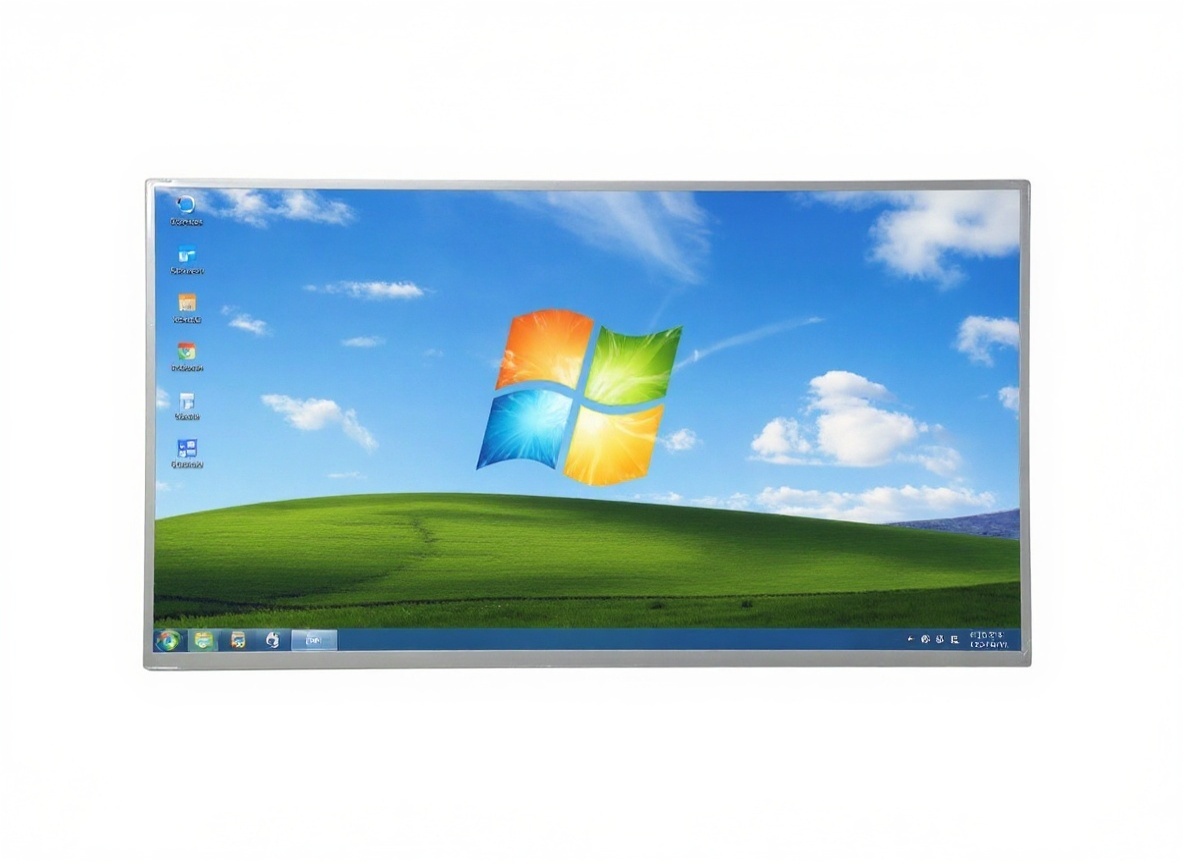

The BOE EV238FHB-N10 is a high-quality 23.8-inch a-Si TFT-LCD display panel designed for medical imaging and industrial display applications. Featuring FHD resolution (1920×1080), 100% sRGB coverage, and wide viewing angles, this model ensures accurate color reproduction and sharp image performance. With a durable antiglare surface and reliable WLED backlight system, it provides long-lasting visual clarity in demanding environments.
The BOE EV238FHB-N10 stands out with its combination of performance and reliability:
This panel is suitable for a wide range of industries and environments:
| Brand | BOE |
| Model | EV238FHB-N10 |
| Diagonal Size | 23.8" |
| Resolution | 1920 × 1080 (FHD) |
| Brightness | 300 nits, 500 nits, 1000 nits, 2000 nits available |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Color Gamut | 100% sRGB |
| Backlight | WLED, 30K hours, Without Driver |
| Surface | Antiglare, Haze 25%, Hard coating (3H) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Weight | 2.39 kg (Typ.) |
XIANHENG has been specializing in LCD display solutions for over 10 years. Contact us today to get the latest stock availability, pricing, and customized solutions.
📩 Contact Sales 📞 Request a Quote
