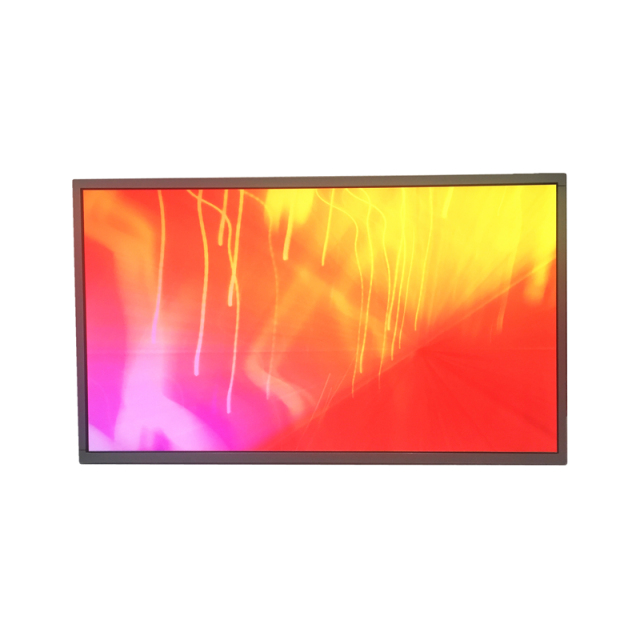

The BOE DV215FHM-NN0 is a high-quality 21.5-inch a-Si TFT-LCD panel with Full HD resolution and an integrated WLED backlight system (without driver). With its 500 cd/m² brightness, wide viewing angles, and Energy Star 7.0 compliance, this panel is a top choice for digital signage and commercial display solutions.
The DV215FHM-NN0 combines high brightness, wide viewing angles, and energy efficiency, making it the perfect panel for environments where visibility and reliability are critical. With a long-lasting backlight system and robust design, this display panel ensures stable performance and reduced maintenance.
It is specifically designed for digital signage applications, where image clarity, durability, and energy savings are essential.
| Brand | BOE |
| Model | DV215FHM-NN0 |
| Diagonal Size | 21.5 inch |
| Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080 (FHD), 102 PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 476.064 × 267.786 mm |
| Outline Dimension | 495.6 × 292.2 × 11.2 mm |
| Bezel Area | 479.8 × 271.2 mm |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ., TM) |
| Response Time | 14 ms (Typ., G to G) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Display Colors | 16.7M, 73% NTSC |
| Light Source | WLED [24S3P], 30K hrs, no driver |
| Weight | 1.97 kg (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30-pin |
| Power Supply | 5.0V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
