Product brief:

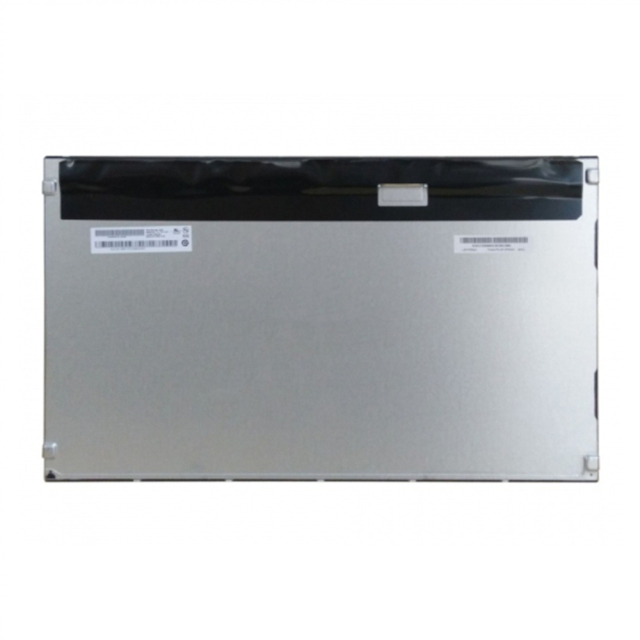

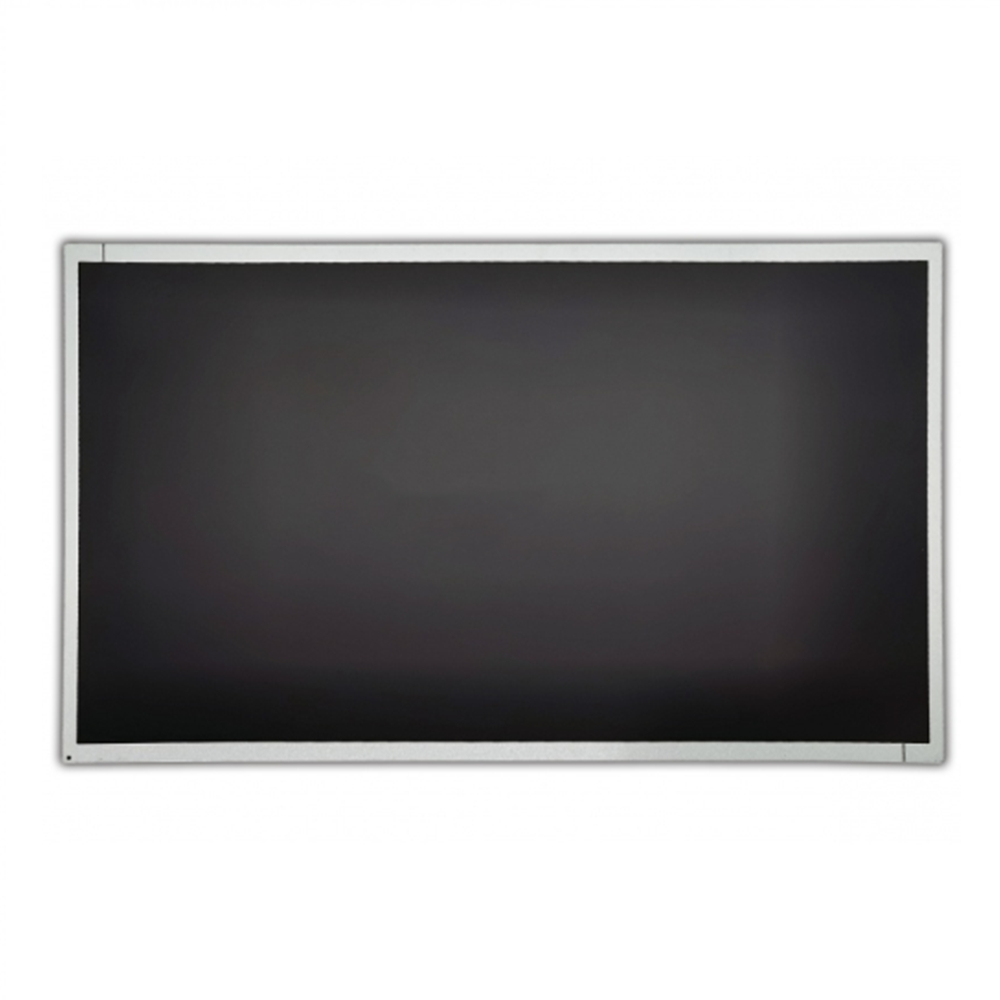

AUO P215HVN01.2 is a 21.5-inch diagonal a-Si TFT-LCD LCM with a built-in WLED backlight (no driver included). It delivers Full HD 1920×1080 resolution at 102 PPI with VA mode for high contrast and wide viewing angles — a reliable choice for industrial digital signage, kiosks, and embedded display systems.
| Model | P215HVN01.2 |
|---|---|
| Diagonal Size | 21.5 inch |
| Resolution | 1920 (RGB) × 1080 (FHD) — 102 PPI |
| Panel Type | a-Si TFT-LCD, LCM (VA, Normally Black) |
| Active Area | 476.64 × 268.11 mm |
| Outline (mm) | 495.6 × 292.2 × 11 (H×V×D) |
| Brightness (Typ.) | 250 cd/m² |
| Contrast Ratio | 3000:1 (Typ., TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) |
| Response Time | Tr/Td = 13/5 ms (Typ.) |
| Backlight | WLED (15S4P), 30,000 hrs (No driver) |
| Interface | LVDS (2 ch, 8-bit), 30-pin connector |
| Power | 5.0V (Typ.) |
| Operating Temp | 0 ~ 50 °C |
| Storage Temp | −20 ~ 60 °C |
| Mass | ~1.67 kg |
Recommended for indoor applications where FHD clarity and strong contrast are required. If your project requires touch, sunlight-readable brightness, or custom mounting, XIANHENG can provide integration and customization services.
