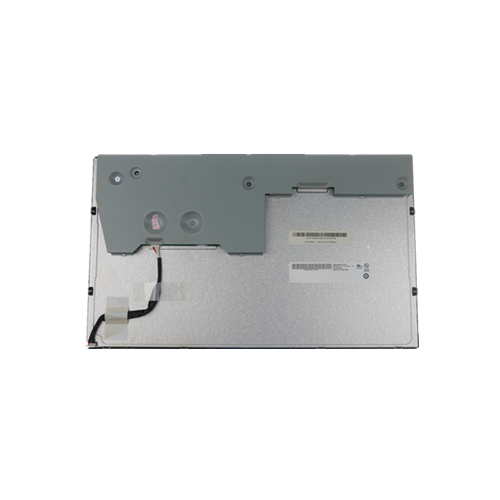

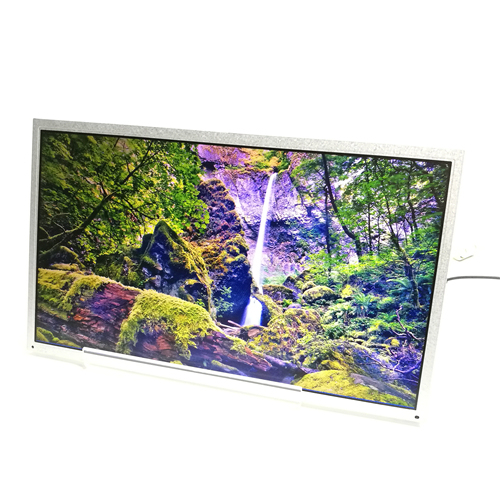

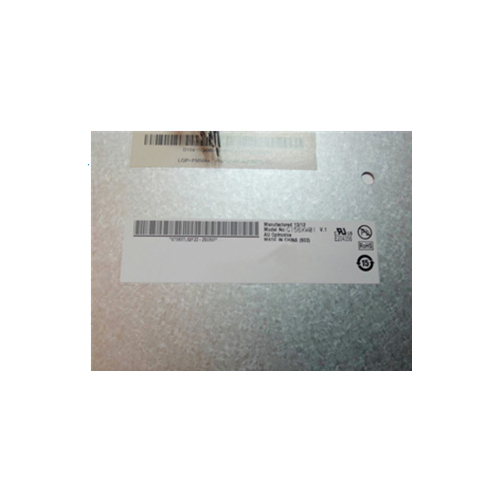

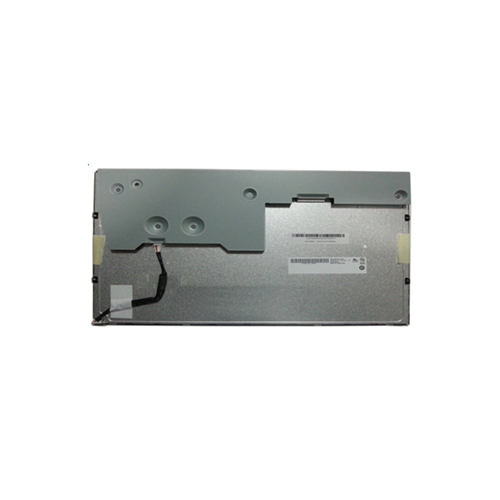

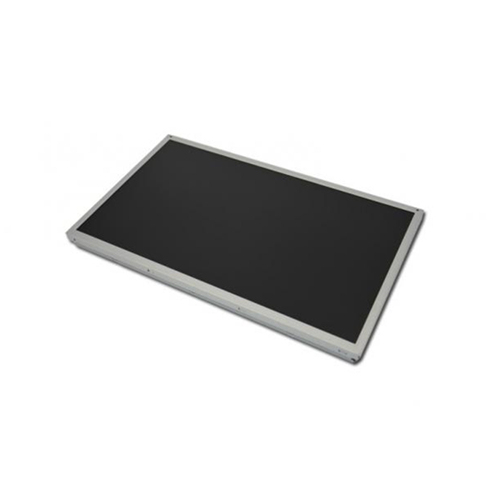

G156XW01 V1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.
| Panel Brand | AUO |
| Panel Model | G156XW01 V1 |
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768,WXGA |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(W)×193.536(H)mm |
| Bezel Opening | 347.54(W)×196.83(H) mm |
| Outline Size | 363.8(W)×215.9(H)×17.35(D)mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 70% (CIE1931) |
| Lamp Type | WLED , 50K hours , Embedded (LED Driver) |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.25/1.35Kgs (Typ./Max.) |
| Application | Industrial Application |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins , Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0~60°C;Storage Temp.:-20~60°C |
