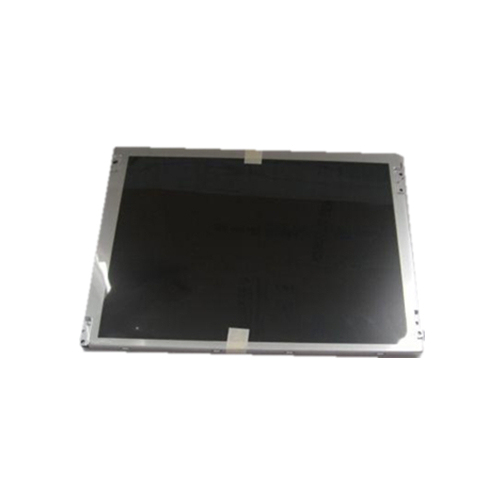

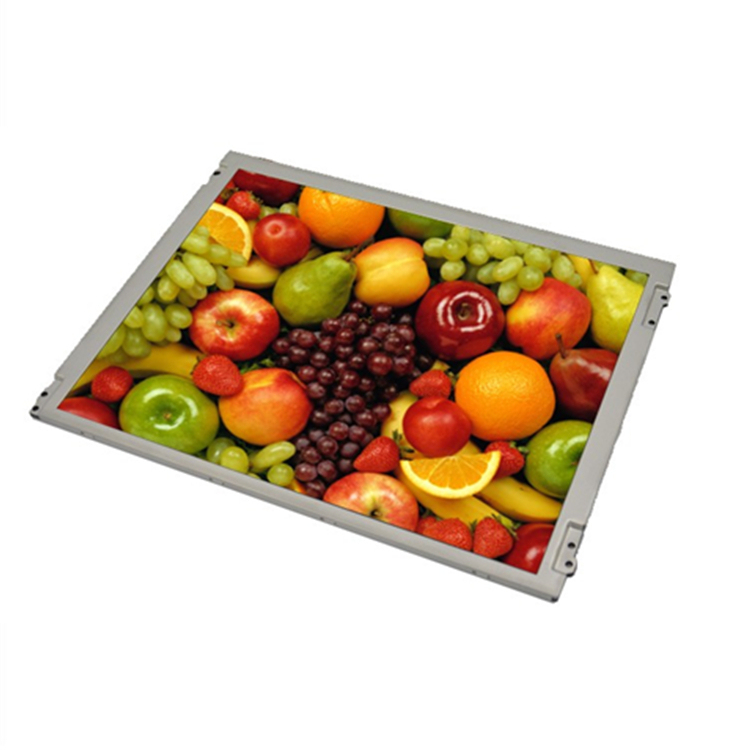

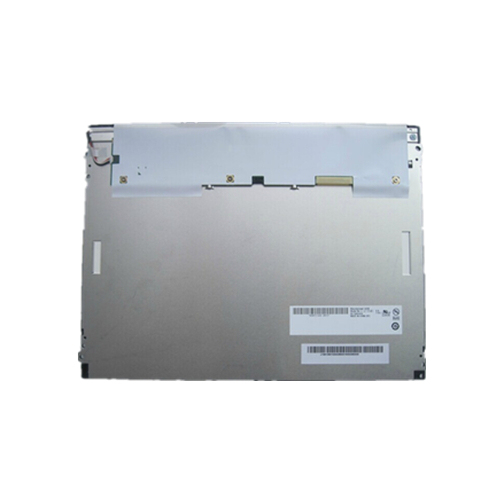

G121SN01 V4 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.
| Brand | AUO |
| Model | G121SN01 V4 |
| Diagonal Size | 12.1 inch |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 800(RGB)×600[SVGA] |
| Configuration | RGB Vertical Stripe |
| Active Area | 246(H)×184.5(V) mm |
| Outline Dim. | 279(H)×209(V) mm |
| Bezel Area | 249.05(H)×188.3(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 25/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) Left/Right/Up/Down |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED[9S2P] , 50K hours , Embedded (LED Driver) |
| Weight | 580g (Max.) |
| Designed For | Industrial Application |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | 20 pins，LVDS (1 ch, 6/8-bit), Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30~85°C; Storage Temperature:-30~85°C |
