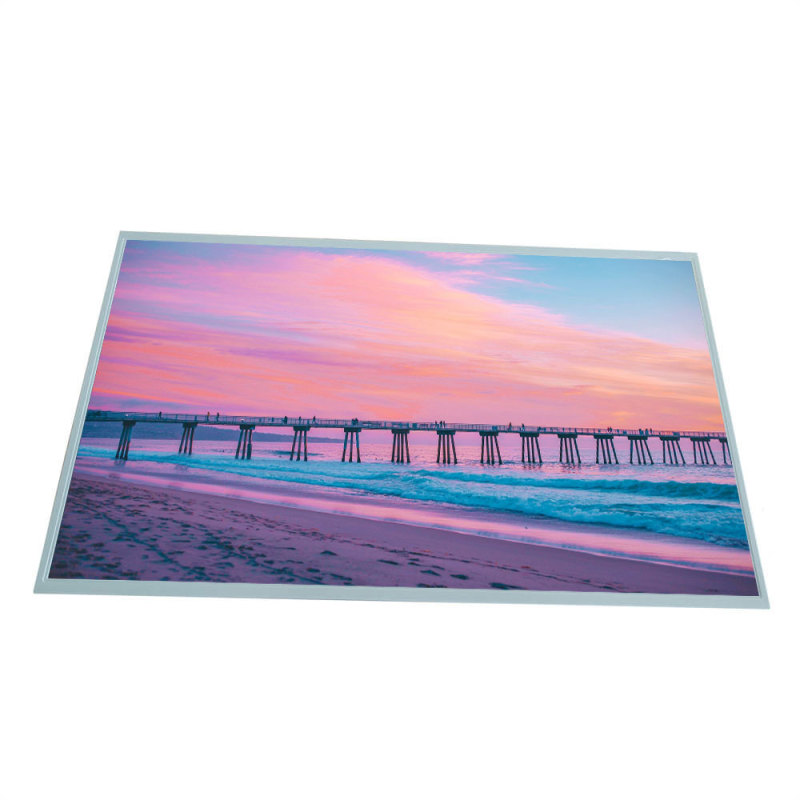

The M215HCA-P02 is a 21.5-inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux) with a WLED backlight and no touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C.
It's general features are summarized by Panelook in the following: Reverse I/F, Matte. Based on its features, XIANHENG recommend that this model be applied to Desktop monitors, etc.Built-in 6-source chip driver IC.
If you want to embed M215HCA-P02 in your future product, XIANHENG strongly recommends that you contact Innolux or XIANHENG TECH to learn the latest production and specification details.
|Diagonal Size||21.5 inch|
|Pixel Format||1920 (RGB)×1080 [FHD] 102PPI|
|Configuration||RGB Vertical Stripe|
|Active Area||476.064(H)×267.786(V) mm|
|Outline Dim.||484.26(H)×279.486(V) ×1.3(D) mm|
|Treatment||Antiglare (Haze 25%), Hard coating (3H)|
|Contrast Ratio||1000:1 (Typ.) (TM)|
|Response Time||8/7 (Typ.)(Tr/Td)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down|
|Operating Mode||AAS, Normally Black, Transmissive|
|Plate Thickness||0.50+0.50 mm|
|Support Color||16.7M 72% NTSC|
|Light Source WLED||WLED|
|Designed For||Desktop Monitor|
|D-IC Detail||COF Built-in 6 source chips|
|Interface Type||LVDS (2 ch, 8-bit) , 30 pins Connector|
|Power Supply||5.0V (Typ.)|
|Environment||Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C|
