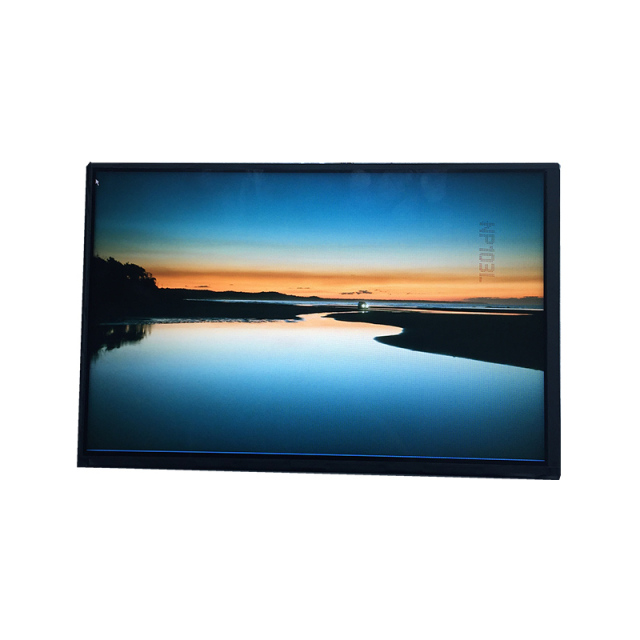

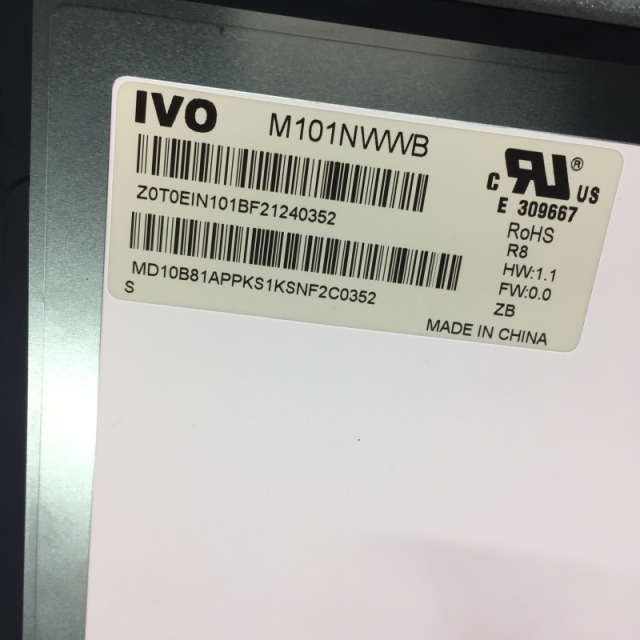

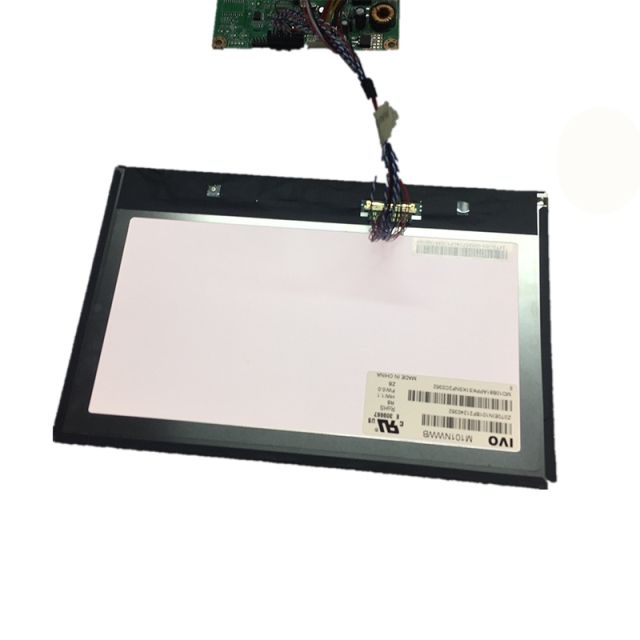

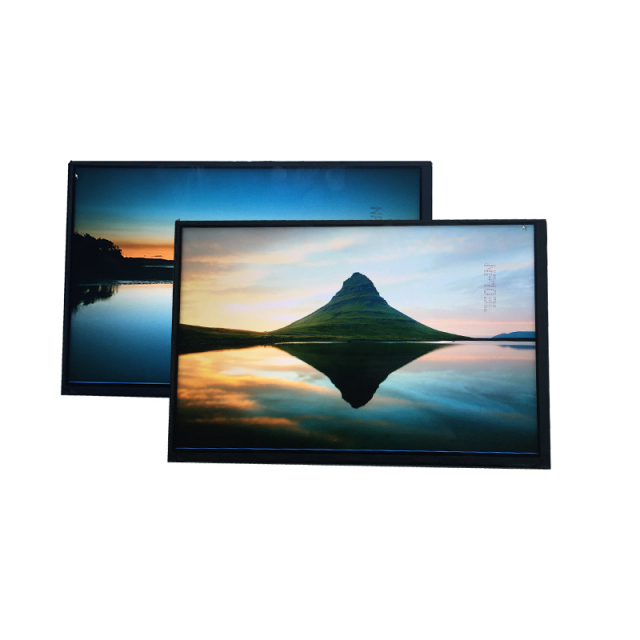

M101NWWB R8 IVO 10.1 inch lcd display panel

The M101NWWB R8 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. This TFT LCD has a 10.1 inch diagonally measured active display area with WXGA resolution (1280 horizontal by 800 vertical pixels array).

General Specification

Panel Brand    IVO

Panel Model    M101NWWB R8

Panel Size    10.1 inch

Panel Type    a-Si TFT-LCD , LCM

Resolution    1280(RGB)×800 , WXGA

Pixel Format    RGB Vertical Stripe

Display Area    216.96(W)×135.6(H) mm

Bezel Opening    -

Outline Size    229.46(W)×149.1(H) ×4.56(D) mm

Surface    Glare(Haze 0%), Hard coating

Brightness    350 cd/m² (Typ.)

Contrast Ratio    800:1 (Typ.) (TM)

Viewing Angle    85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode    IPS, Normally Black, Transmissive

Best View on    Symmetry

Response Time    25 (Typ.)(Tr+Td)

Display Colors    16.7M   45% (CIE1931)

Lamp Type    WLED , Without Driver

Frequency    60Hz

Touch Screen    Without

Panel Weight    160g (Max.)

Application    Pad & Tablet

Signal Interface    LVDS (1 ch, 8-bit) , 40 pins ,Connector

Input Voltage    3.3V (Typ.)

Environment    Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
